Product Description

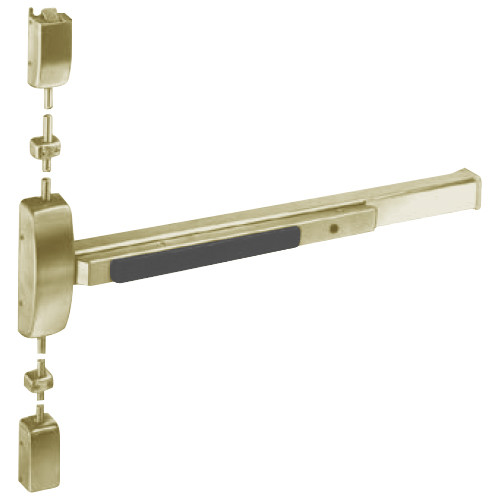

12-8710F-LHR-04 Sargent 80 Series Exit Only Fire Rated Surface Vertical Rod Exit Device in Satin Brass Finish

The Sargent 12-8710F-LHR-04 exit device is used for the wood and metal door application. The 8700 Surface vertical rod exit device has two point latching (top and bottom of the door) and is adjustable through the center case. This series provides the best combination of simplicity, strength, durability, aesthetics and innovation. The 8700 series exit device is certified to the ANSI/BHMA Standard 156.3, Grade 1.

Features and Benefits:

• Satin Brass finish
• Door thickness: Wood or metal 1-3/4" (44mm) minimum thickness
• Handing: Left handed
• F Rail for 33" to 36" door widths
• No cutting required for 36" door
• Fire rated exit device
• Single and double door applications
• Device centerline from finished floor: 41" (1041 mm) for standard applications
• Strike: 646 Top strike; 655 bottom strike
• Rods are 1/2" (13mm) brass, bronze or stainless steel
• Mounting: Supplied standard with wood and machine screws
• Center case dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Exit only - No outside operation
