Product Description

12-8810E-10B Sargent 80 Series Exit Only Fire Rated Rim Exit Device in Oil Rubbed Bronze Finish

The Sargent 12-8810E-10B exit device is designed for standard width stile applications on wood and metal doors. The 8800 series provides the best combination of simplicity, strength, durability, aesthetics and innovation. The 8800 series exit device is certified to the ANSI/BHMA Standard 156.3, Grade 1.

Features and Benefits:

• Oil Rubbed Bronze finish
• Door thickness: Wood or metal 1-3/4" (44mm) minimum thickness
• Handing: Non handed
• E Rail for 24" to 32" door widths
• No cutting required for 32" door
• Fire rated exit device
• Single and double door applications with a mullion
• Device centerline from finished floor: 41" (1041 mm) for standard applications

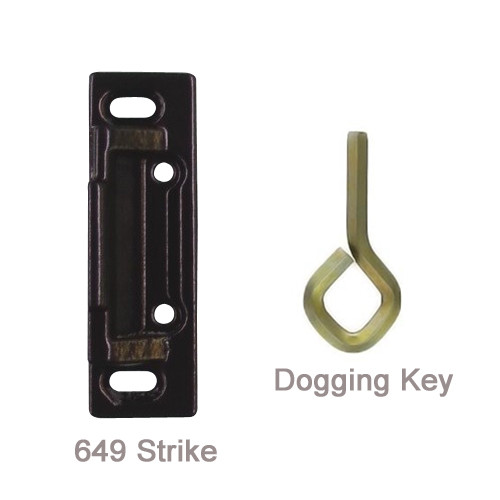

• Strike: 649 Standard black nylon coated
• Mounting: Supplied standard with wood and machine screws
• Center case dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Exit only - No outside operation
• Single point rim latching device
