Product Description

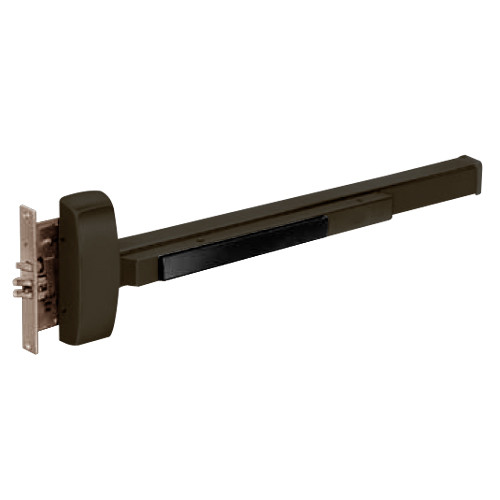

12-8910G-RHR-10B Sargent 80 Series Exit Only Fire Rated Mortise Lock Exit Device in Oil Rubbed Bronze Finish

The Sargent 12-8910G-RHR-10B exit device is designed for standard width stile applications on wood and metal doors application. The 8900 Mortise lock exit device has concealed single point guarded latching for additional security. This series provides the best combination of simplicity, strength, durability, aesthetics and innovation. The 8900 series exit device is certified to the ANSI/BHMA Standard 156.3, Grade 1.

Features and Benefits:

• Oil Rubbed Bronze finish
• Door thickness: Wood or metal 1-3/4" (44mm) minimum thickness
• Handing: Right handed
• G Rail for 43" to 48" door widths
• No cutting required for 48" door
• Fire rated exit device
• Single and double door applications
• Device centerline from finished floor: 41" (1041 mm) for standard applications
• Strike: C908 standard black nylon coated
• Latch Bolt: Brass nickel plated, 3/4" (19mm) throw, anti-friction
• Mounting: Supplied standard with wood and machine screws
• Center case dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Exit only - No outside operation
