Product Description

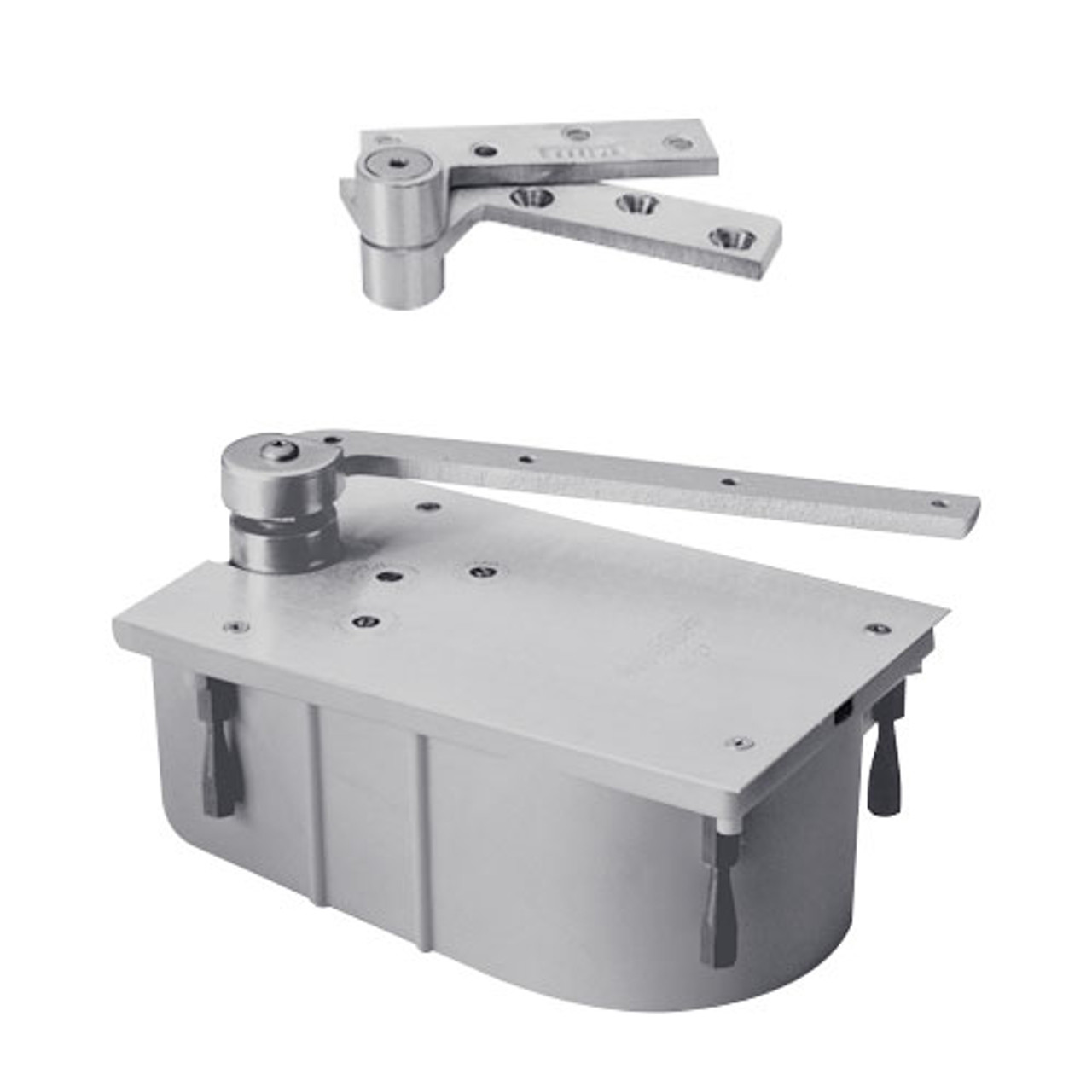

127-105S-CWF-LH-626 Rixson 27 Series Heavy Duty 3/4" Offset Hung Floor Closer in Satin Chrome Finish

The Rixson 127-105S-CWF-LH-626 provides the best mechanical means to support and control a door. It is designed to work with physics rules to provide long-term performance and reliability. The weight of the door is supported by the bottom arm and floor. This is ideal for single acting exterior or interior doors. These 127 series heavy-duty floor closers are certified to ANSI/BHMA A156.4 standards.

Recommended for applications where vertical movement of the door at installation is not possible, such as a door inset in a deep reveal or with no ceiling clearance.

Cold Weather Fluid: Cold weather fluid should be specified for exterior doors in consistently cold climates under 32° F for weeks at a time. The hydraulic fluid is of a lower viscosity to prevent sluggish closing.

Features and Benefits:

• Satin Chrome finish
• Mounting Style: 3/4" Offset
• Handing: Left handed, Single acting
• Selective hold open
• Built-in positive dead stop prevents door from swinging 105 degree
• Weight to 250 lbs.
• Door Width up to 4'0" (1219mm)
• Cycolac, rust-proof cement case
• Standard top pivot: 180 included
• Heavy duty offset hung floor closers
• Non fire rated
• Furnished with wood and machine screws

Note: Door size & weight guidelines are determined using the appropriate number of intermediate pivots
