Product Description

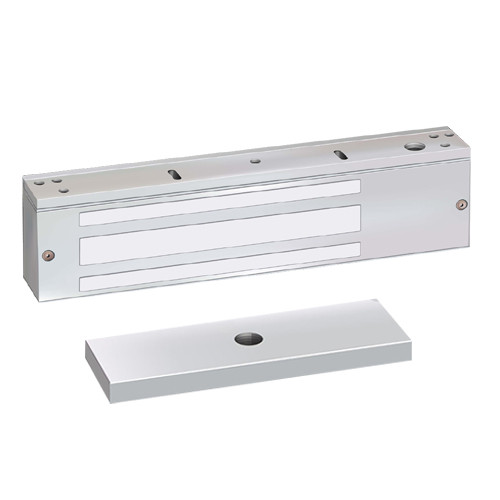

1571VB SDC 1510 Series 1200lb Holding Force Single EM Magnetic Door Lock with Magnetic Bond Sensor in Aluminum Finish

The SDC 1571VB EM magnetic lock series are compatible with any access control system, all EmLocks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. This series is UL listed and certified to ANSI Grade 1. The 1500 series EMLocks provide 1200lb holding force.

Magnetic Bond Sensor: Indicates locked with full holding power and unlocked, low holding power, low voltage, tampering and obstruction between armature and magnetic core.

Features and Benefits:

• Aluminum finish
• 1200lb/544 kg holding force
• Dimension: 11" L x 2.75" H x 1.562" D
• Voltage: 12/24VDC voltage sensing input
• Single EM lock: 125mA @ 24VDC; 250mA @ 12VDC
• BHMA certified holding force
• UL, CSFM, MEA Listed
• Magnetic bond sensor is included
