Product Description

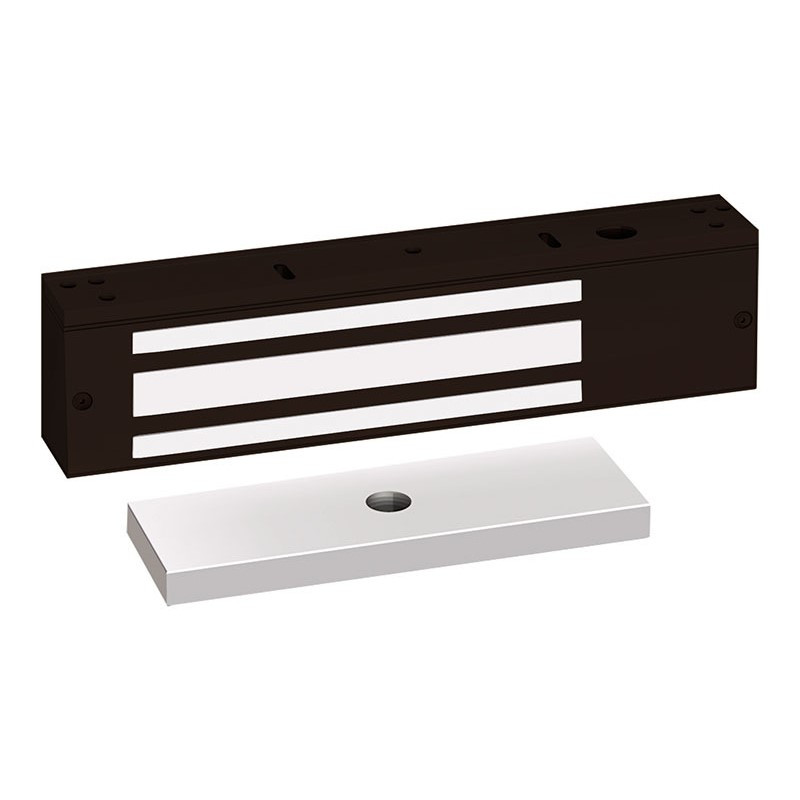

1571Y SDC 1570 Series 1200lb Holding Force Single EM Magnetic Door Lock in Black Finish

The SDC 1571Y EM magnetic lock series are compatible with any access control system, all EmLocks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. This series is UL listed and certified to ANSI Grade 1. The 1570 series EMLocks provide 1200lb holding force.

Features and Benefits:

• Black finish
• 1200lb/544 kg holding force
• Dimension: 11" L x 2.75" H x 1.562" D
• Voltage: 12/24VDC voltage sensing input
• Single EM lock: 125mA @ 24VDC; 250mA @ 12VDC
• BHMA certified holding force
• UL, CSFM, MEA Listed
