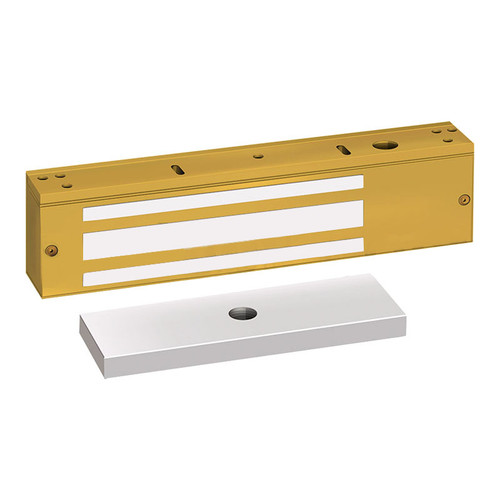

1582CD2B2 SDC 1580 Series 650lb Holding Force Double EM Magnetic Door Lock with Door Position and Magnetic Bond Sensor in Brass Powder Coat Finish
The SDC 1582CD2B2 EM magnetic lock series are compatible with any access control system, all EmLocks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. This series is UL listed and certified to ANSI Grade 1. The 1500 series EMLocks provide 650lb holding force.
Door position sensor: Indicates door open and door closed.
Magnetic Bond Sensor: Indicates locked with full holding power and unlocked, low holding power, low voltage, tampering and obstruction between armature and magnetic core.
Features and Benefits:
- Brass Powder Coat finish
- 650lb/295 kg holding force
- Dimension: 17.5" L x 2.125" H x 1.25" D
- Voltage: 12/24VDC voltage sensing input
- Double EM lock: 440mA @ 24VDC; 880mA @ 12VDC
- BHMA certified holding force
- UL, CSFM, MEA Listed
- Door position sensor is included
- Magnetic bond sensor is included
