Product Description

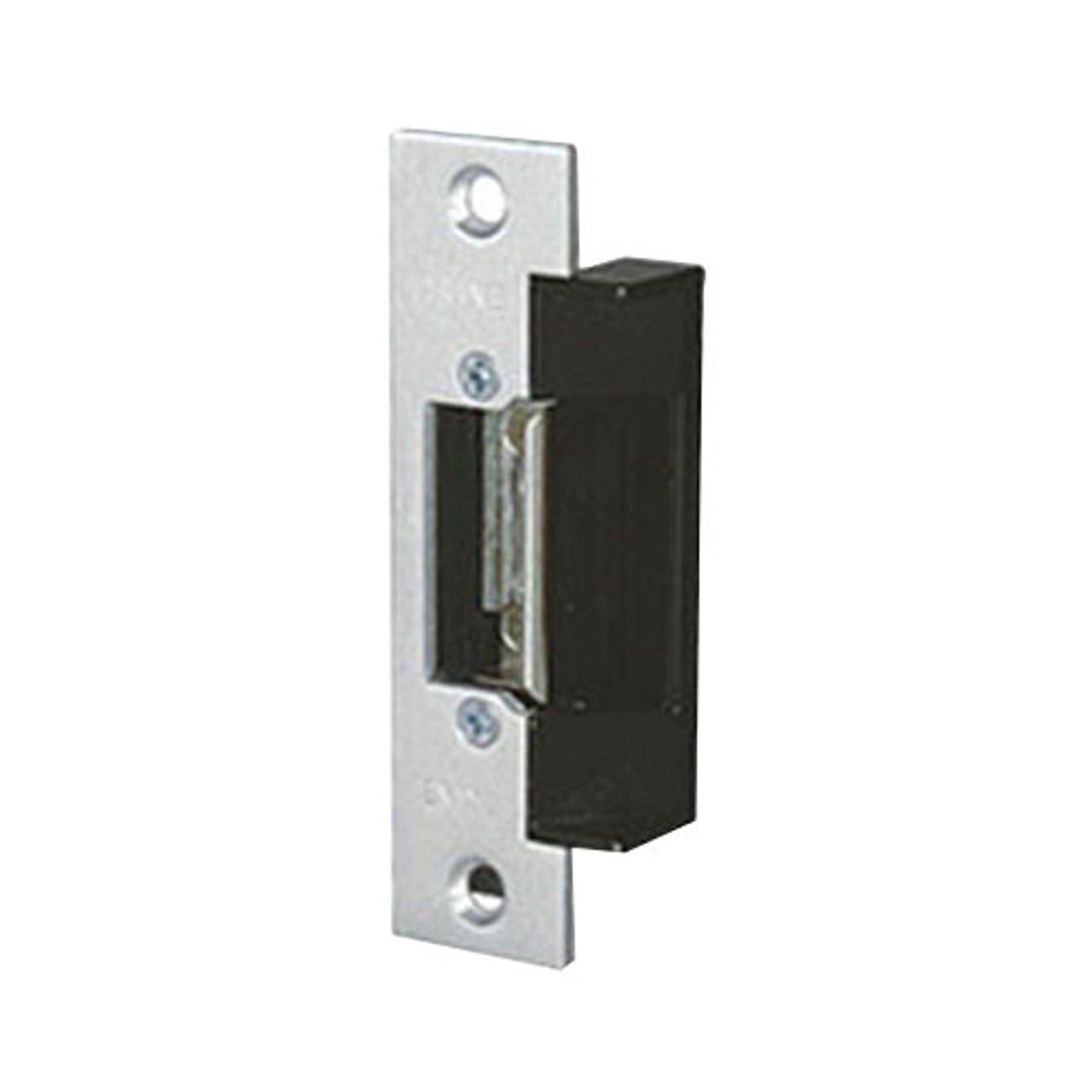

2012C-RS-24DC Trine Light Commercial Adjustable 2000 Series Fail Safe Electric Strikes in Satin Chrome Finish

The 2012C-RS-24DC series are used for new or replacement installations in metal jambs and use with locksets having up to 5/8" throw, based on 1/8" door gap. Fits a standard 4-7/8" ANSI prep with little jamb modification and centerline of the latch is 3/8" below ANSI centerline for offset applications.

Features and Benefits:

• Satin Chrome finish
• Faceplate: 4-7/8" x 1-1/4"
• 1/8" horizontal latch adjustment
• 900 lbs holding force
• Auxiliary ramp: 3-3/8"
• Mortise backset: 1-9/16"
• 24V DC
• Fail safe
• Durability: 500000 life cycles
• Solid cast latch - chrome plated
• Releases under slight door preload
• Allows adjustment for wider latch bolts and poorly aligned doors and locksets
