Product Description
2060-484-03 Sargent 480 Series Double Cylinder Auxiliary Deadbolt Lock Prepped for LFIC in Bright Brass Finish
The Sargent 2060-484-03 series is a high grade cylindrical deadbolt which meets ANSI A156.5 Grade 1 requirements.

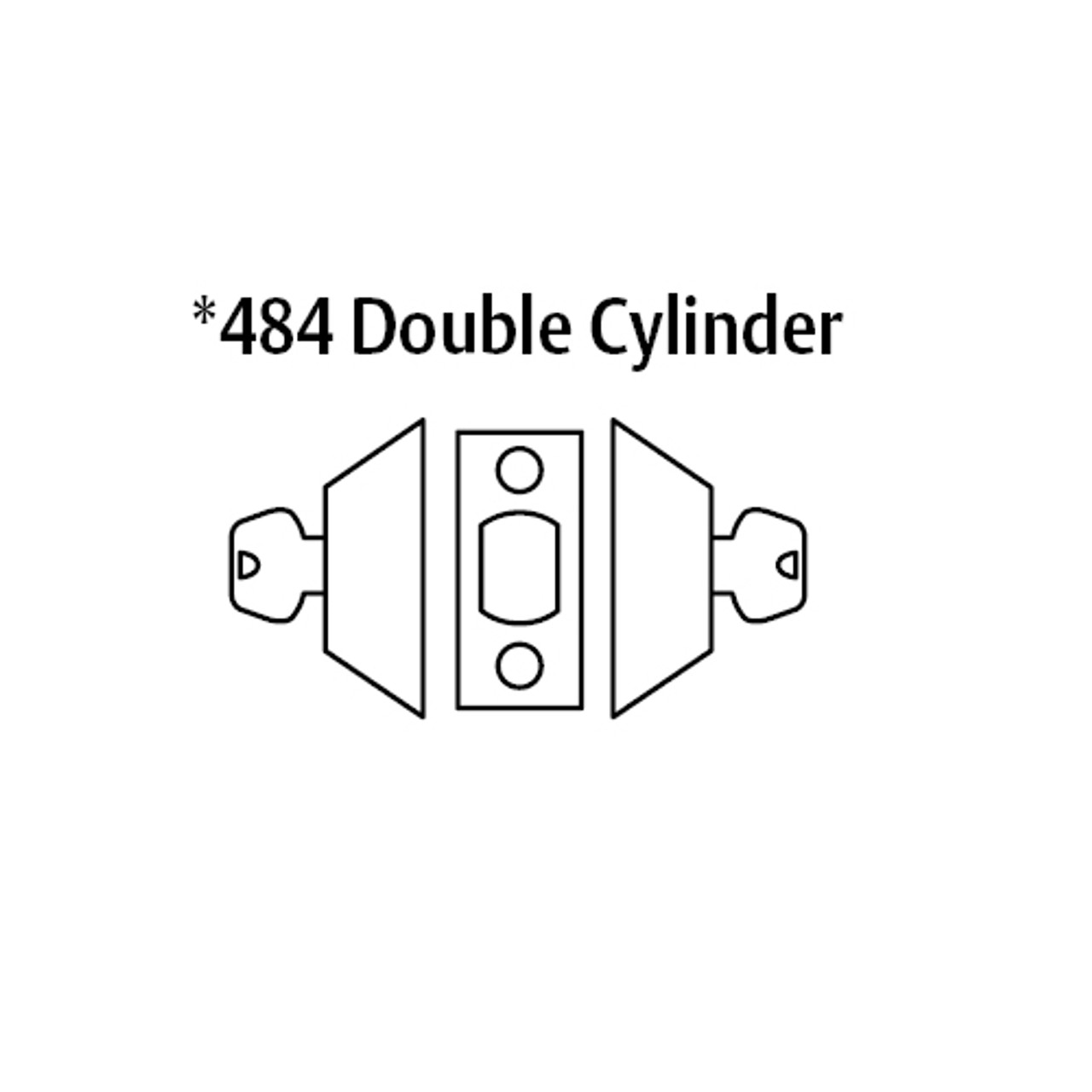

Double Cylinder with deadbolt: Key from either side operates deadbolt.
Features and Benefits:
- Bright Brass finish
- Strike: 404 Strike standard
- Backset: 2-3/8" Backset - 2-3/4" x 1" front
- Handing: Non handed, field reversible
- Core is not included
- Bolt: 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw
- For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) thick standard
- Housing: Non-ferrous, reinforced, one piece 2-1/2" (64mm) diameter
- Double cylinder
- SARGENT Large format interchangeable plastic disposable construction core
