Product Description

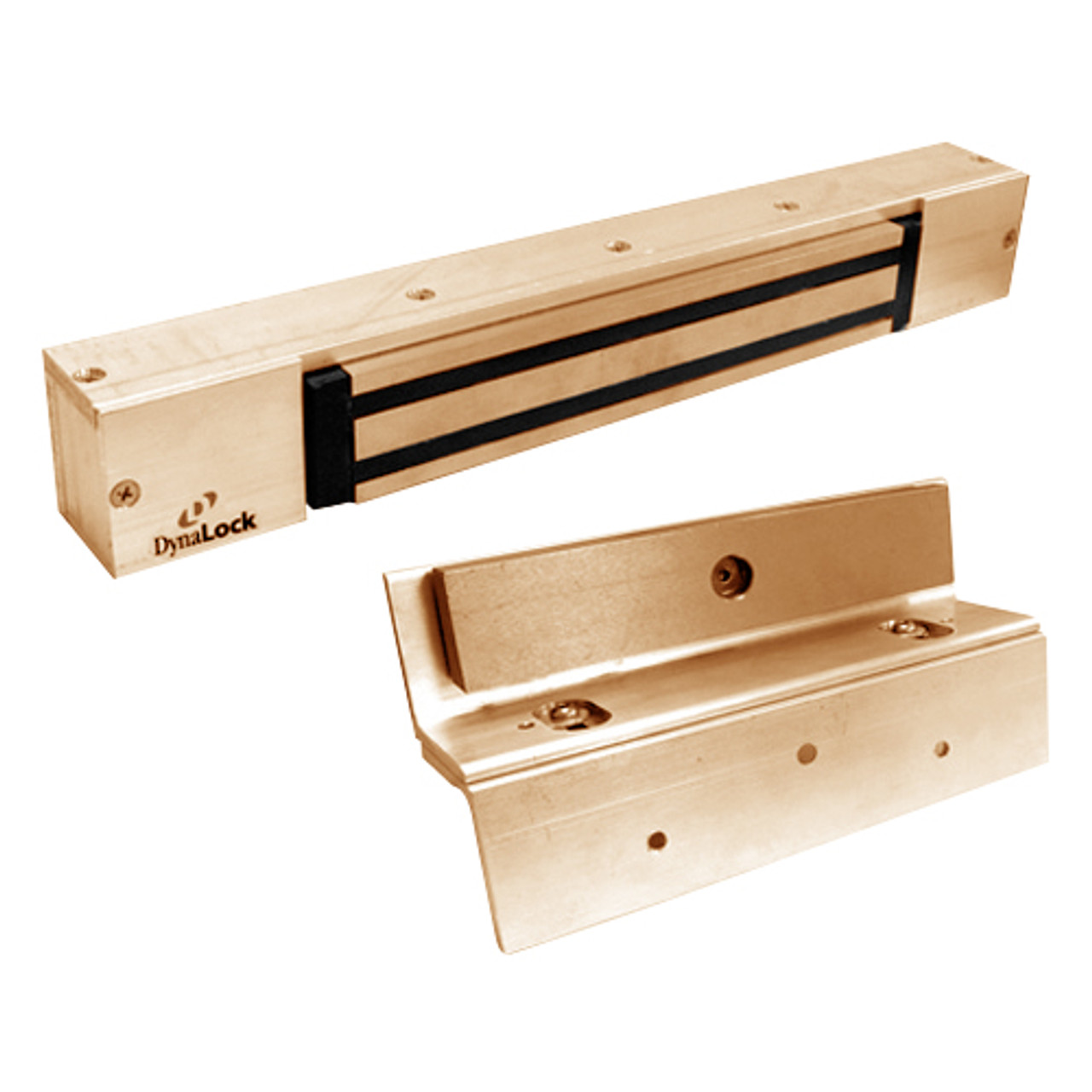

2268-TJ10-US10-ATS DynaLock 2268 Series Single Classic Low Profile Electromagnetic Lock for Inswing Door with ATS in Satin Bronze
The Dynalock 2268-TJ10-US10-ATS series low profile electromagnetic lock is designed for surface mounted single inswing door. The 2268 series is perfect for opening heights of 7 or less to facilitate code compliance on designated egress doors. The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts. It is designed for life safety and high security on rated or non rated doors and frames.
Features and Benefits:
- Satin Bronze finish
- For single inswing door
- Input voltage: 12 or 24 VDC field selectable
- Housing dimensions: 2-3/16" D x 2" H x 14" L
- Holding force: 1200 lbs
- Non handed
- Anti-tamper switch - Signals removal of housing cover
- Adjustable mounting base reduces installation time and insures proper alignment.
- Low power consumption conserves energy, reduces operation cost, and extends battery backup time.
- A Totally plated coil and armature provides protection against corrosion.
- No residual magnetism: The gate releases without delay when lock is de-energized.
