Product Description

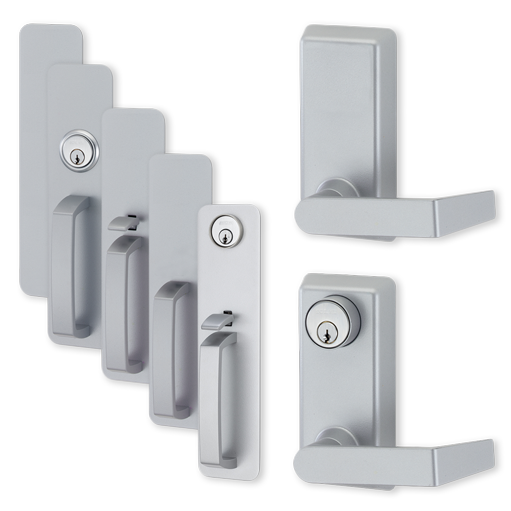

230TP-SP28 Von Duprin Thumbpiece Trim Key Locks and Unlocks for 22 Series Exit Device in Aluminum Finish

The Von Duprin 230TP-SP28 is a thumbpiece trim option that works with the Von Duprin 22 Series Panic Bars. The key locks and unlocks the door and the thumbpiece retracts the latch. This trim is useful for areas where you want the door to stay closed in between users as the latch will catch. The latch will hold the door in place as opposed to when a panic bar is dogged open and the door only needs to be pulled to be opened.

Features and Benefits:

• Aluminum finish
• Projection: 2" (51 mm)
• Cylinder type: 1-1/4" mortise
• Cylinder is not included
• Pull center to center: 5-1/2" (140 mm)
• Escutcheon plate size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
