Product Description

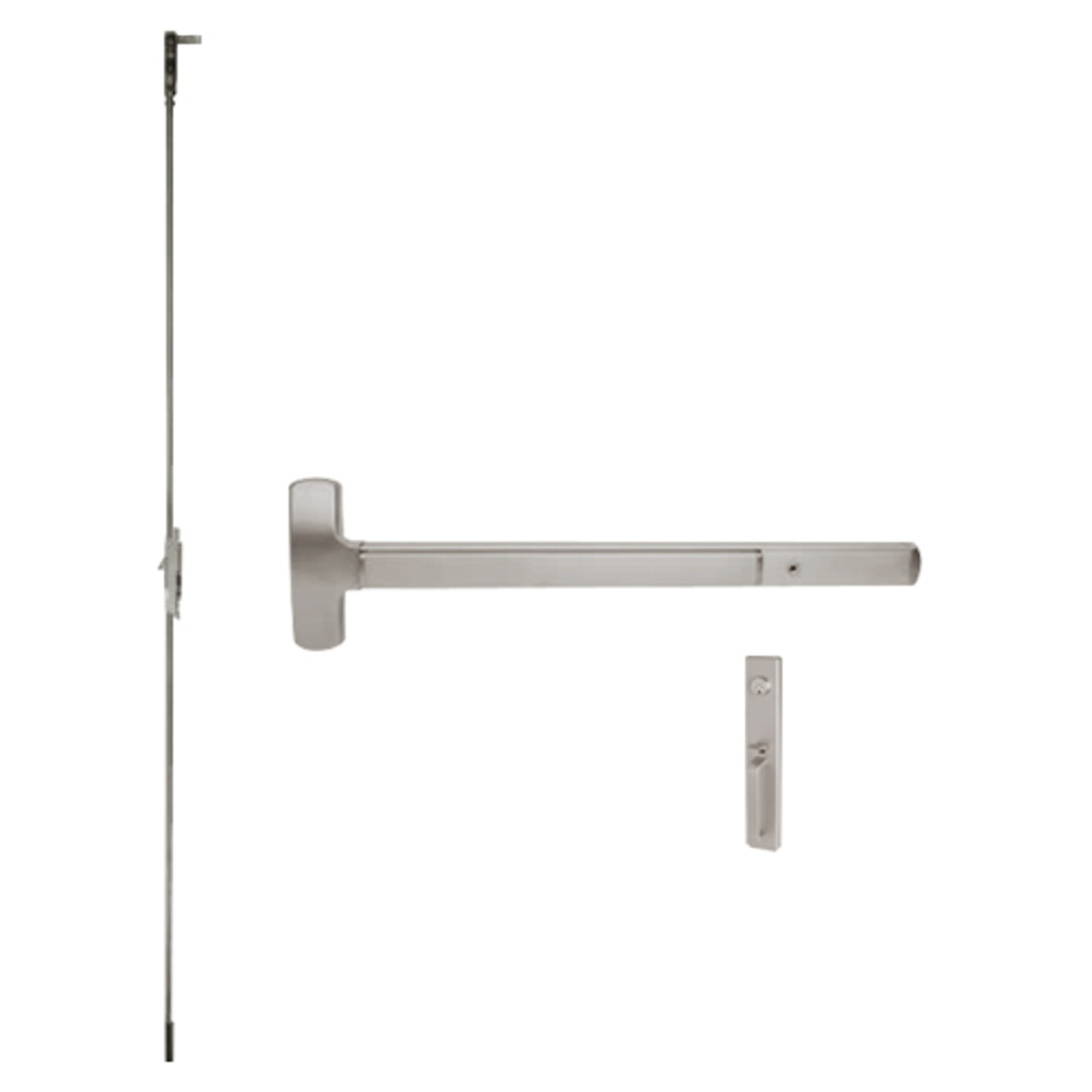

25-C-TP-US32D-4 Falcon 25 Series Concealed Vertical Rod Devices with 512TP Thumbpiece Trim in Satin Stainless Steel Finish

This device is for a 48" door

The Falcon 25-C-TP-US32D-4 Concealed vertical rod device is used for metal and wood door applications. The Falcon 25-C Series concealed vertical rod device offers extraordinary value, clean styling and the security advantages of two-point latching. Concealed vertical rods add strength to the door, while maintaining an alluring appearance. This series patented center slide mechanism allows you to easy rod adjustment in the field. The 25-C series are certified to ANSI A156.3-2001 grade 1 standards.

Features and Benefits:

• Satin Stainless Steel finish
• Cylinders are not included
• Handing: Non handed
• 512TP Thumbpiece trim
• Latchbolt: Top stainless steel 3/4" throw. Bottom bolt, 1/2" throw
• Dogging: Half turn hex dogging standard
• Device lengths: 4 feet (48 inch)
• Doors: 1-3/4" thick, wood or metal
• Projections: 2-3/4" maximum, 2" dogged

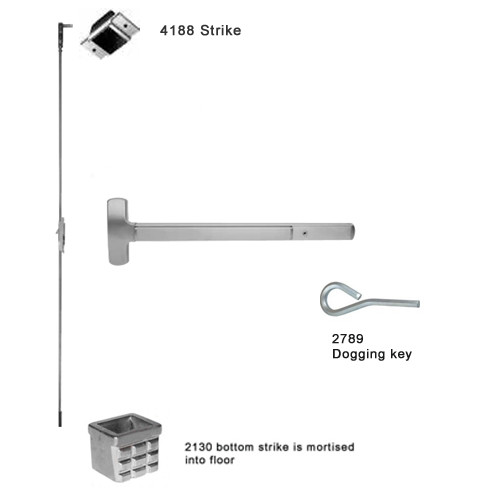

• Strike: 4188 mortised top, 2130 bottom standard
• Deadlocking latchbolt standard in top latch
• Latch retention hold standard in top latch
• Fasteners: All mounting screws are concealed, sheet metal screws standard
• Non fire rated hardware
• Clean design with no exposed screws or rivets on the back of the device
• Vertical rods: Furnished to length based on 40-1/4" horizontal CL to finished floor and a 7'0" door.
• Streamlined design includes flush-end cap for clean lines and a more attractive installation
