Product Description

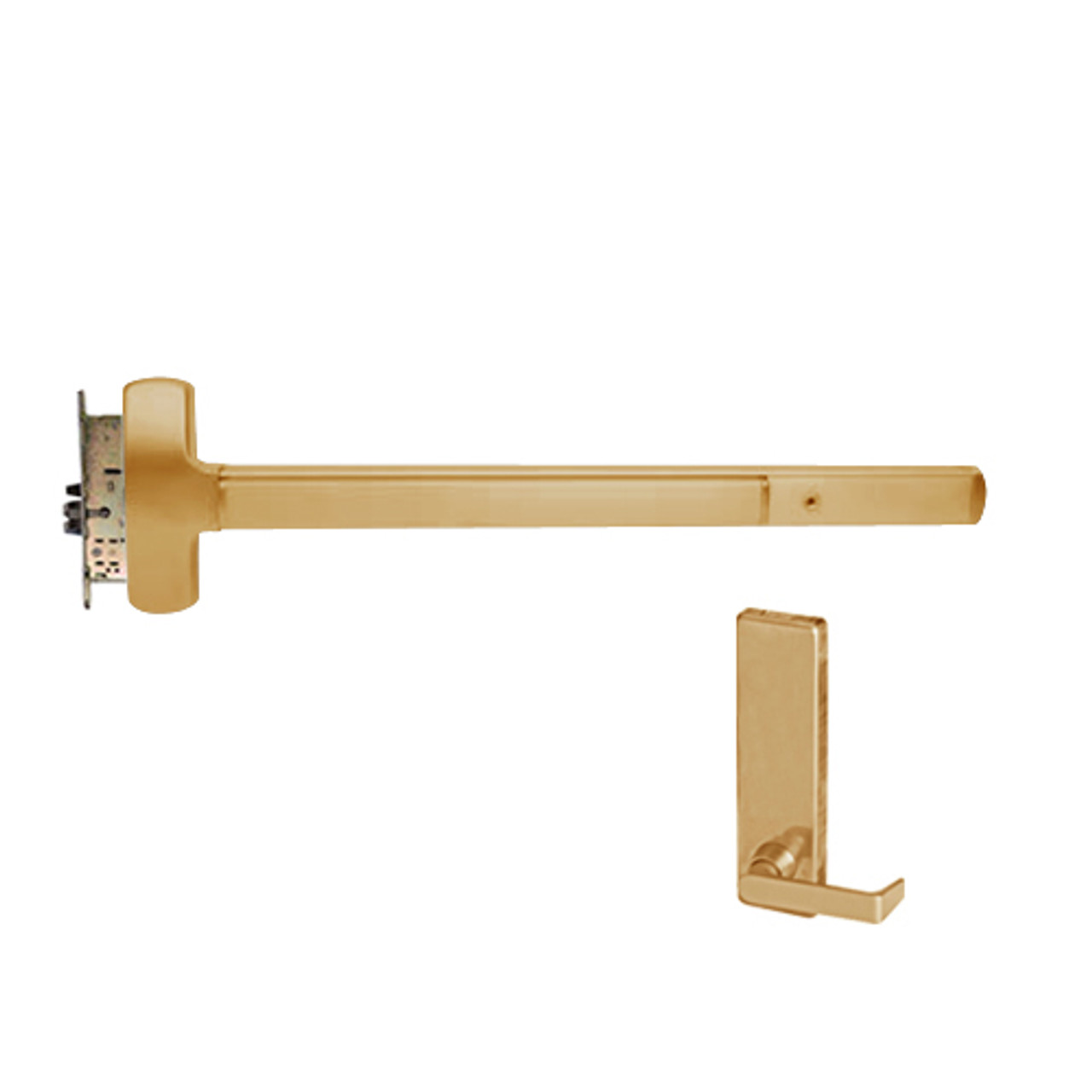

25-M-L-BE-DANE-US10-4-RHR Falcon 25 Series Mortise Lock Devices 510L-BE Dane Lever Trim with Blank Escutcheon in Satin Bronze Finish

This device is for a 48" door

The Falcon 25-M-L-BE-DANE-US10-4-RHR Mortise exit device is used for the wood and metal door applications. The falcon exit device provides pairs a tough, reliable exit device with our strongest mortise lock. The outcome is maximum safety and security in a solitary point, mortise latch type device that also has an alluring touch bar design. This series are certified to ANSI A156.3-2001 Grade 1.

Features and Benefits:

• Satin Bronze finish
• Cylinders are not included
• Handing: Right handed
• 510L-BE Dane Lever Trim with blank escutcheon
• Latchbolt: Stainless steel, 3/4" throw
• Dogging: Half turn hex dogging standard
• Device lengths: 4 feet (48 inch)
• Doors: 1-3/4" thick, wood or metal
• Projections: 2-3/4" maximum, 2" dogged
• Strike: 1279 strike is included
• Deadlocking latchbolt standard
• Non fire rated hardware
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Streamlined design includes flush-end cap for clean lines and a more attractive installation
