Product Description

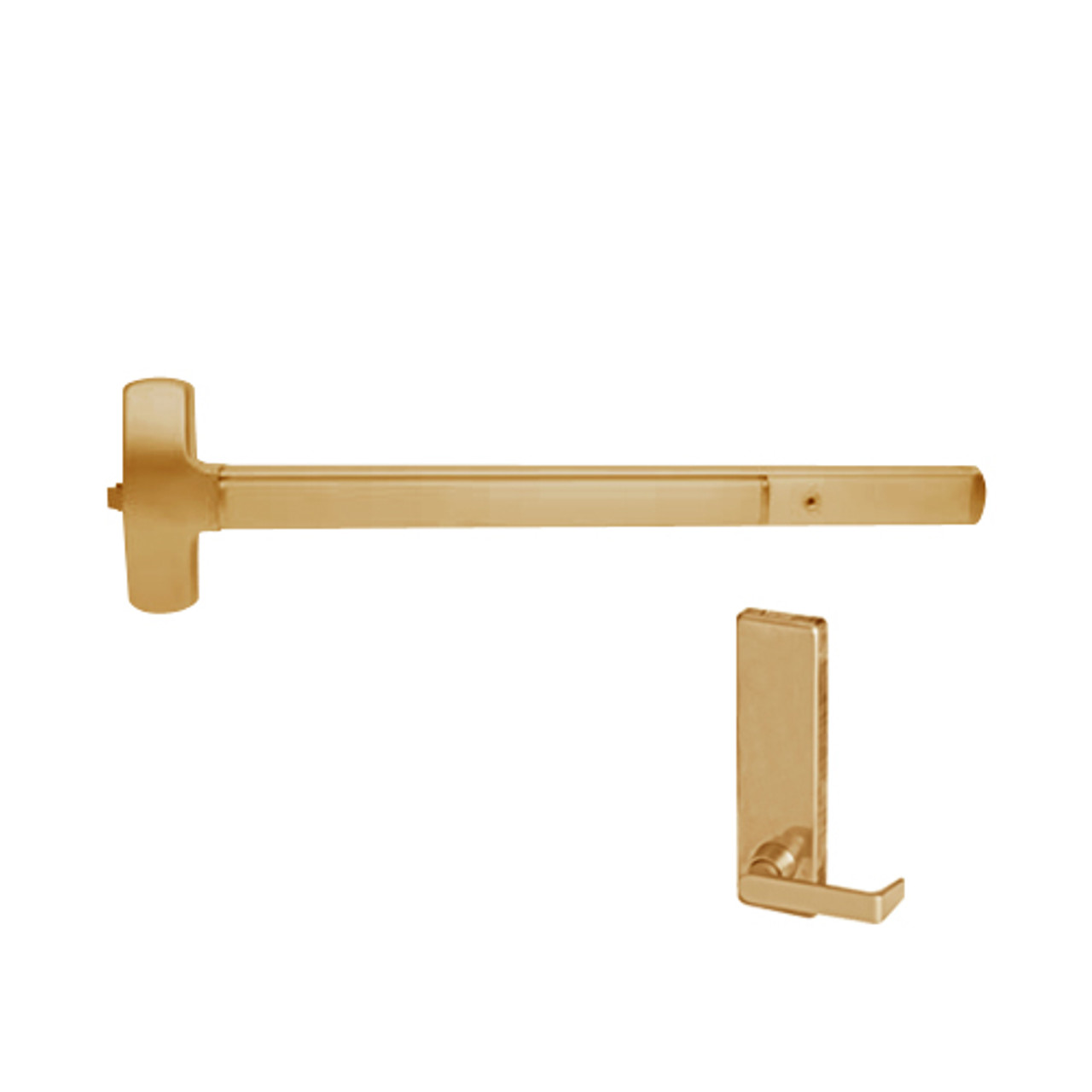

25-R-L-BE-DANE-US10-3-LHR Falcon 25 Series Rim Exit Device 510L-BE Dane Lever Trim with Blank Escutcheon in Satin Bronze Finish

This device is for a 36" door

The Falcon 25-R-L-BE-DANE-US10-3-LHR series of exit device for all types of single doors and double doors. The Falcon 25 Series exit devices provide you a full range of functions and are for wide stile door types. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This 25 series is used for offices, churches, hospitality, retail, education, healthcare.

Features and Benefits:

• Satin Bronze finish
• Cylinders are not included
• Handing: Left handed, field reversible
• 510L Dane lever trim with blank escutcheon
• Latchbolt: Stainless steel, 3/4" throw
• Dogging: Half turn hex dogging standard
• Device lengths: 3 feet (36 inch)
• Doors: 1-3/4" thick, wood or metal door
• Projections: 2-3/4" maximum, 2" dogged
• Strike: 299 strike standard
• Deadlocking latchbolt Standard
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• 25 series exit devices are non fire rated hardware and are certified to ANSI A156.3-2001 grade 1
