Product Description

25-R-L-DT-DANE-US32D-4-RHR Falcon 25 Series Rim Exit Device with 510L-DT Dane Lever Dummy Trim in Satin Stainless Steel Finish

This device is for a 48" door

The Falcon 25-R-L-DT-DANE-US32D-4-RHR series of exit device for all types of single doors and double doors. The Falcon 25 Series exit devices provide you a full range of functions and are for wide stile door types. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This 25 series is used for offices, churches, hospitality, retail, education, healthcare.

Features and Benefits:

• Satin Stainless Steel finish
• Cylinders are not included
• Handing: Right handed, field reversible
• 510L-DT Dane lever with dummy trim
• Latchbolt: Stainless steel, 3/4" throw
• Dogging: Half turn hex dogging standard
• Device lengths: 4 feet (48 inch)
• Doors: 1-3/4" thick, wood or metal door
• Projections: 2-3/4" maximum, 2" dogged

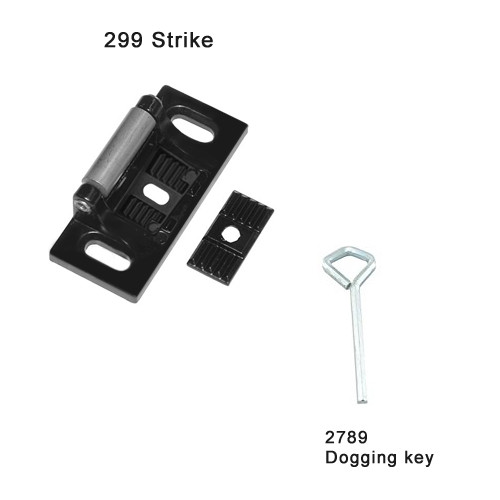

• Strike: 299 strike standard
• Deadlocking latchbolt Standard
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• 25 series exit devices are non fire rated hardware and are certified to ANSI A156.3-2001 grade 1
