Product Description

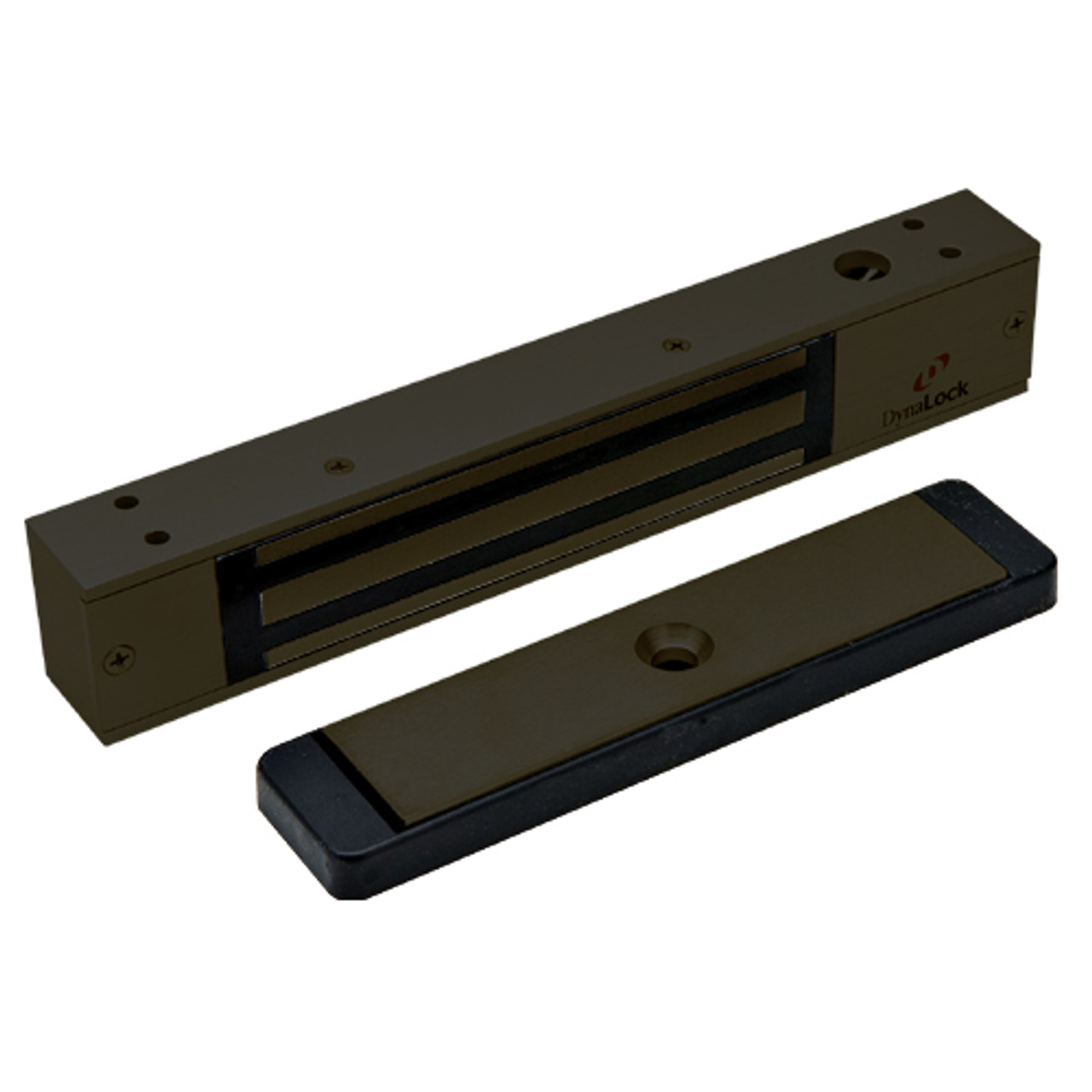

2511-US10B DynaLock 2500 Series 650 LB Mini-Mag Single Electromagnetic Lock for Outswing Door in Oil Rubbed Bronze

The Dynalock 2511-US10B series mini electromagnetic lock is designed for surface mounted single outswing door. The 2500 series electromagnetic lock is comprised of 3 basic components: a lock housing, an electromagnetic coil, and an armature. The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities.

Features and Benefits:

• Oil Rubbed Bronze finish
• For single outswing door
• Input voltage: 12 or 24 VAC/VDC field selectable
• Size: 1-1/4"D x 1-3/4"H x 10-1/2"L
• Holding force: 650 lbs
• Ideal for low security applications
• Compact "Mini Mag" lock design
• Low power consumption conserves energy, reduces operation cost, and extends battery backup time.
• A Totally plated coil and armature provides protection against corrosion.
• No residual magnetism: The gate releases without delay when lock is de-energized.
