Product Description

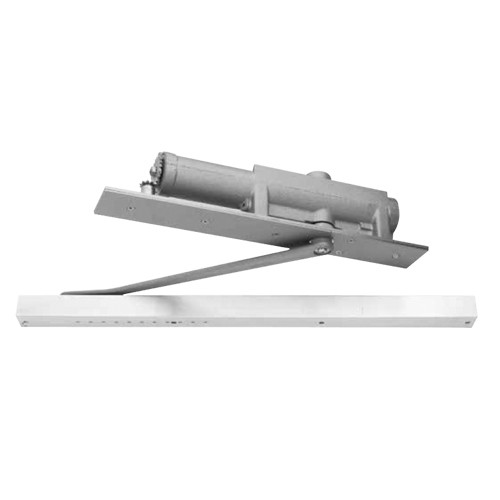

268-CSP-EP-LH Sargent 268 Series Complete Closer Security Package Concealed Door Closer with Track Arm in Satin Bronze Powder Coat Finish

The Sargent 268-CSP-EP-LH Concealed door closers are designed for interior and exterior doors with quality and flexibility to meet virtually every application. When security is desired the concealed nature of the 268 closer provides a high degree of resistance to abuse since the arm, track and closer is completely concealed when the door is closed. The 268 Series door closers are certified to the ANSI/BHMA A156.4 Grade 1.

The SARGENT concealed closer security packages provide a vandal-resistance design ideal for correctional institutions and other abusive environments.

Features and Benefits:

• Satin Bronze Powder Coat finish
• One piece cast iron body
• Handing: Left handed
• Full rack and pinion construction
• 1-1/2" dia. piston for superior door control
• Heavy duty forged steel arm
• UL/cUL listed for use on fire rated doors
• CSP - Closer Security Pack
• Includes security track that automatically ejects foreign material
• Heavy duty steel cover plate protects adjusting valves from possible tampering
• Tamper resistant security screws provided for track and closer cover plate
• Concealed in-frame design inhibits possible tampering
• Fully concealed closer body concealed in the frame head
• Track fully concealed in door. Arm is only visible when door is open
• 1-3/4" (44mm) min. door thickness
• Metal closer faceplate furnished standard
• Closers are factory preset for 3' door width
• All-weather fluid allows closer to operate properly in extreme cold and hot environments without readjustment
