Product Description

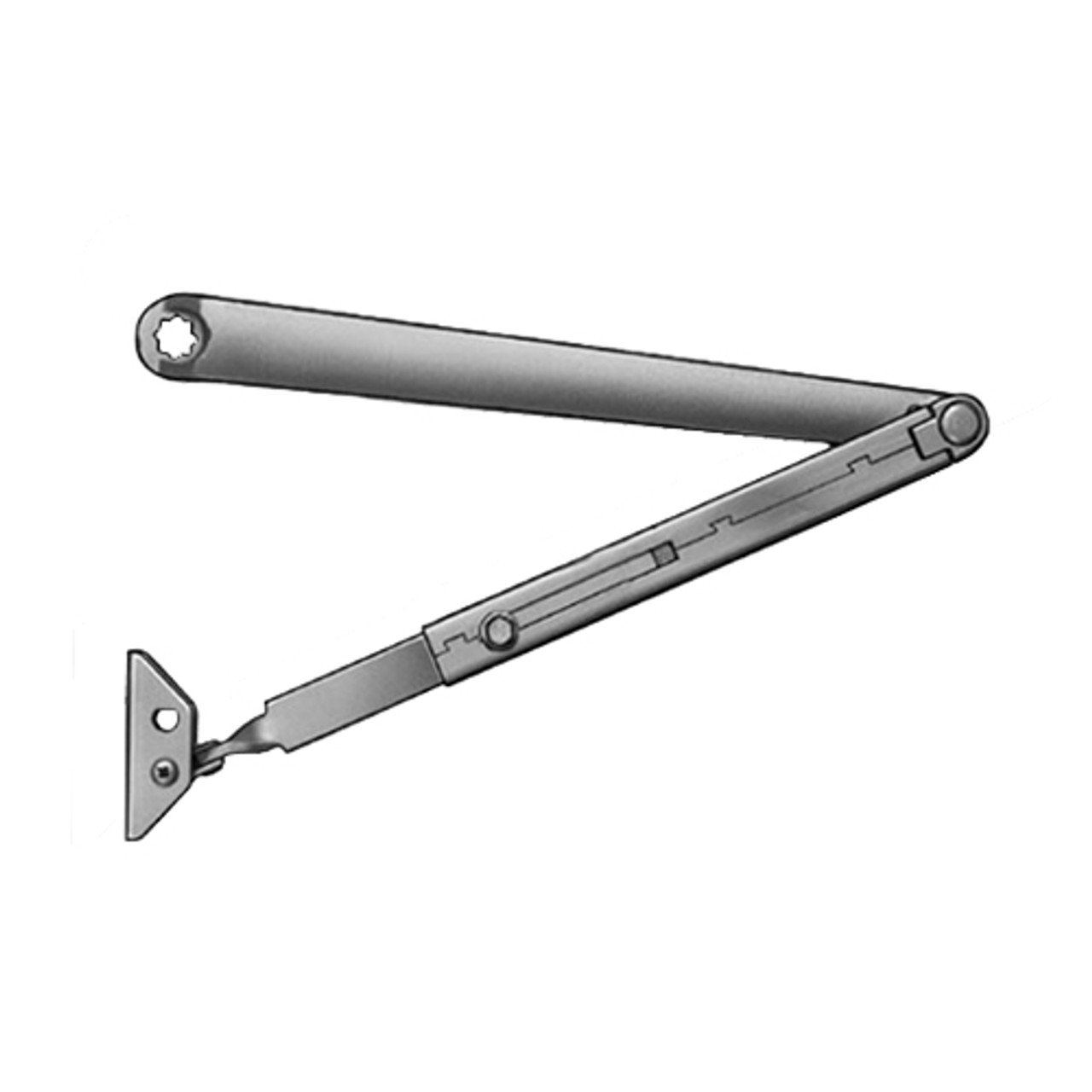

269-OB-10BE-LH Sargent 269 Series Concealed Door Closer with Track Arm w/Bumper in Dark Oxidized Satin Bronze Finish
The Sargent 269-OB-10BE-LH Concealed door closer provides exceptionally strong closing forces and is the ideal closer to use with heavy doors or exterior doors opening to 180°. When security is desired the concealed nature of the 269 closer provides a high degree of resistance to abuse since the arm, track and closer is completely concealed when the door is closed. The 269 Series door closers are certified to the ANSI/BHMA A156.4 Grade 1.
Features and Benefits:
- Dark Oxidized Satin Bronze finish
- One piece cast iron body
- Handing: Left handed
- Full rack and pinion construction
- 1-1/2" dia. piston for superior door control
- Heavy duty forged steel arm
- UL/cUL listed for use on fire rated doors
- Closing speed, latching speed and backcheck shall be controlled by key operated valves.
- Concealed in-frame design inhibits possible tampering
- Fully concealed closer body concealed in the frame head
- Track fully concealed in door. Arm is only visible when door is open
- 1-3/4" (44mm) min. door thickness
- Metal closer faceplate furnished standard
- Closing force adjustable from size 4 to 5
- All-weather fluid allows closer to operate properly in extreme cold and hot environments without readjustment
