Product Description

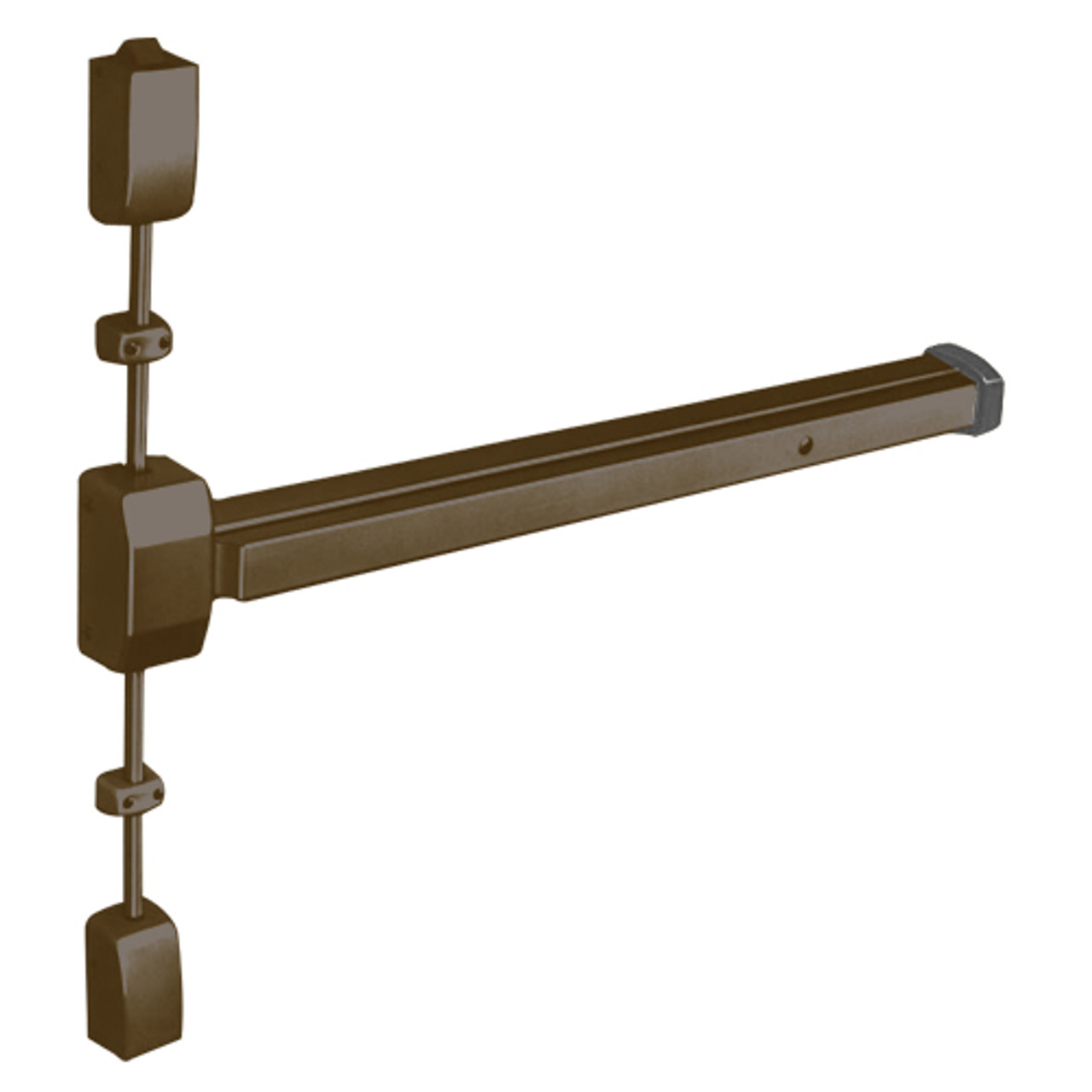

2727E-EB Sargent 20 Series Reversible Vertical Rod Exit Device in Sprayed Bronze Finish

The Sargent 2727E-EB exit device are used for the single and double door application. The 2727 Multi-function surface vertical rod exit device is the perfect stocking device. The 2727 series exit device are certified to the ANSI/BHMA Standard 156.3, Grade 1.

Features and Benefits:

• Sprayed Bronze finish
• Door thickness: 1-3/4" (44) thick standard
• Handing: Reversible
• Steel endcaps and covers
• Non fire rated exit device
• Rail assembly: Roll formed steel
• Latchbolt: Brass
• Strike: 646 Top strike, 624 bottom strike
• Dogging feature: Allen-type key furnished standard
• Mounting: Furnished standard with wood and machine screws
• Rail sizes for doors: 24' through 32" (61cm through 81cm)
• Chassis mounted unit construction assures easy installation and maintenance
