Product Description

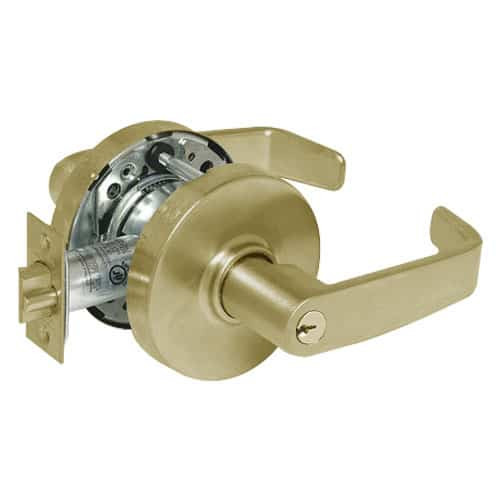

28-10G05-LL-04 Sargent 10 Line Cylindrical Entry/Office Locks with L Lever Design and L Rose in Satin Brass Finish

The Sargent 28-10G05-LL-04 Entry/Office locks are designed to conform to national and state fire and handicapped requirements. The 10 Line bored lock is the standard for institutional applications such as medical, educational and municipal facilities. The 10 Line lock is a heavy duty cylindrical key-in-lever handle lockset that far exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards.

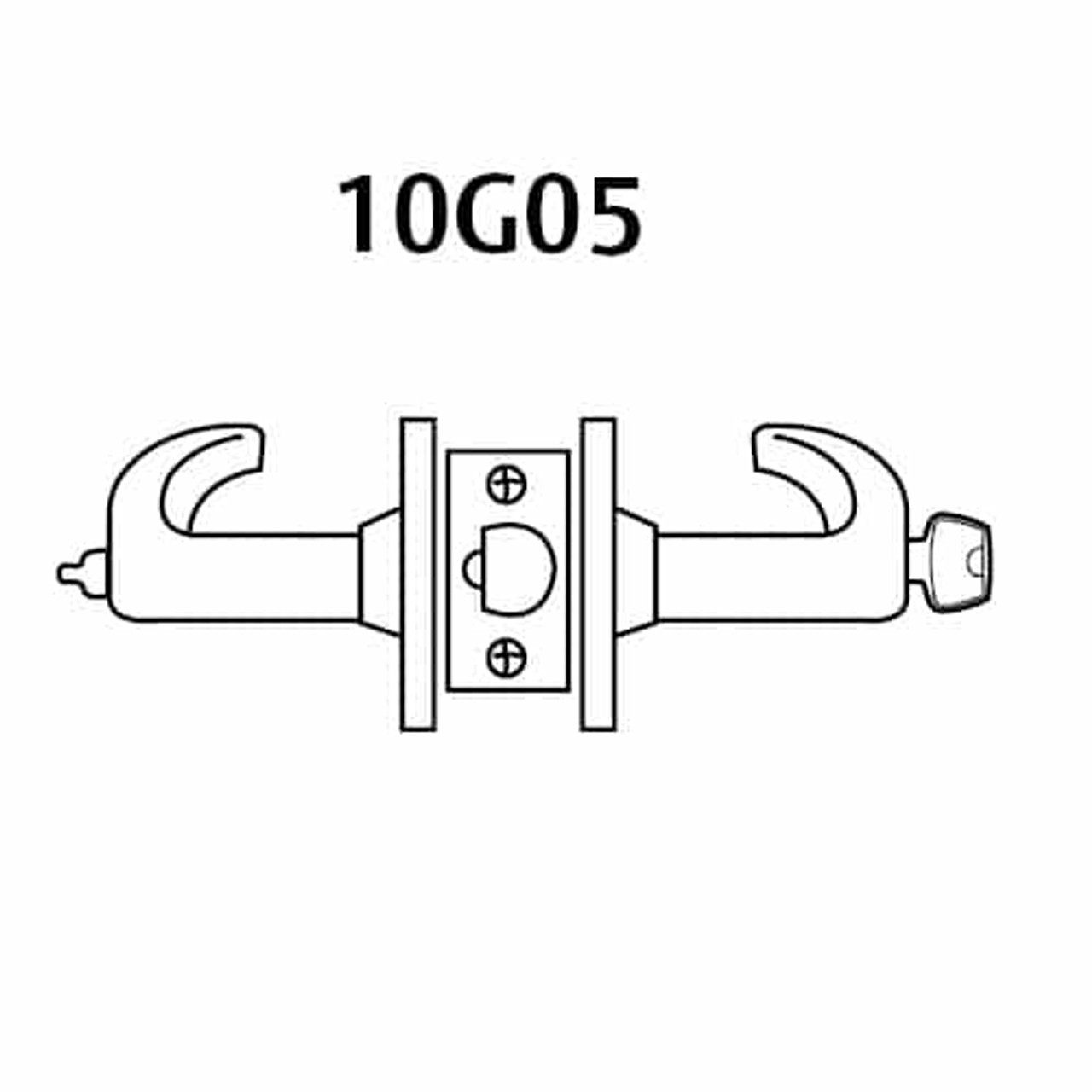

Entry/Office lock: Latch by either lever unless outside lever is locked by push/turn button in inside lever; Push button released by key outside or lever inside; Key retracts latch when outside lever is locked

Features and Benefits:

• Satin Brass finish
• Strike: 808 curved lip ANSI strike
• Backset: 2-3/4" backset
• Handing: Non handed
• 4-7/8" Curved lip strike
• Latch: Stainless steel 1/2" (13mm) throw
• ANSI/BHMA: F109
• L-Lever design with L rose
• Single cylinder
• Two, nickel silver keys are included
• Cylinder: Brass, 6 pin, LA keyway standard
• Backsets: 2-3/4" (70mm) backset with 1-1/8" front (standard)
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection
• Door range: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
