Product Description

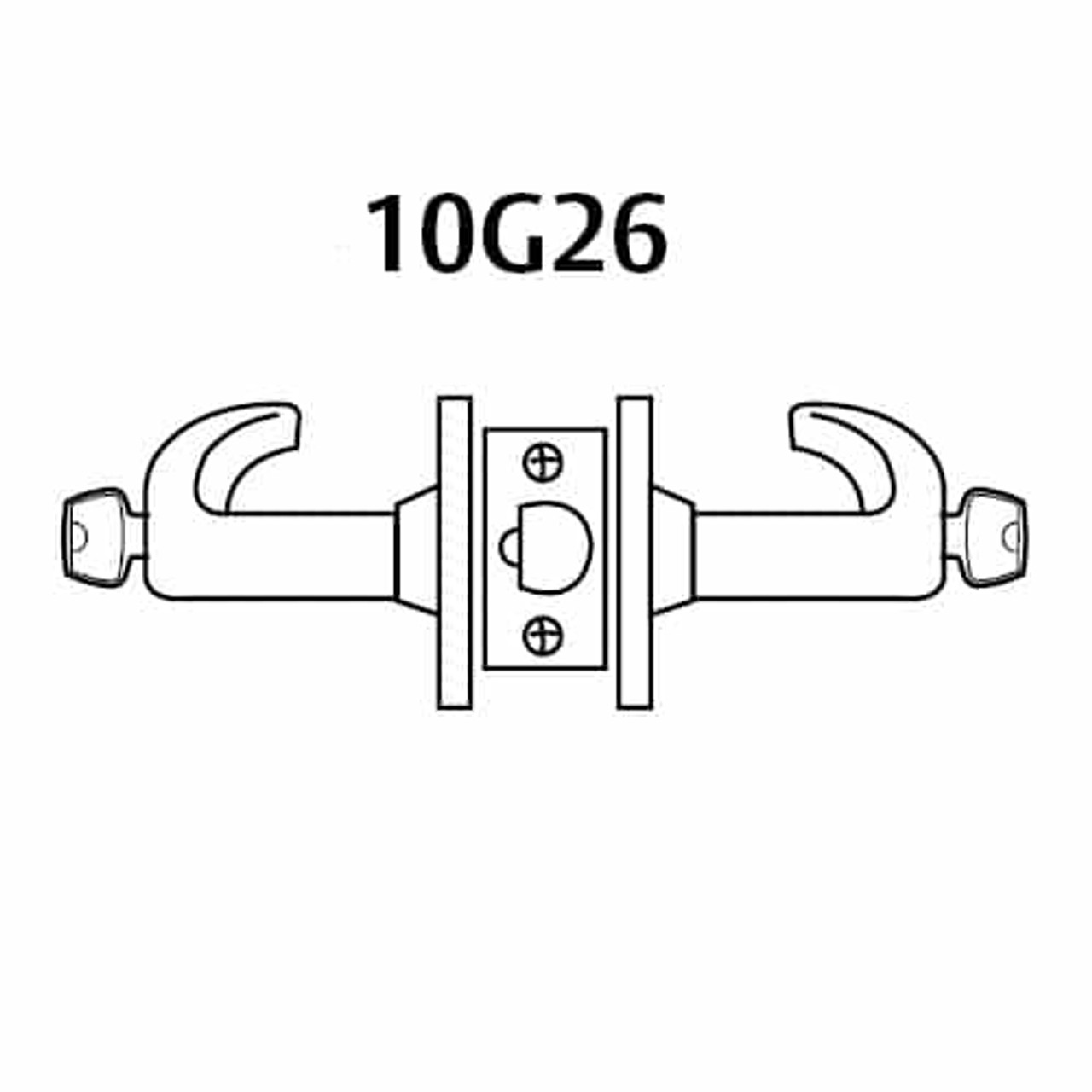

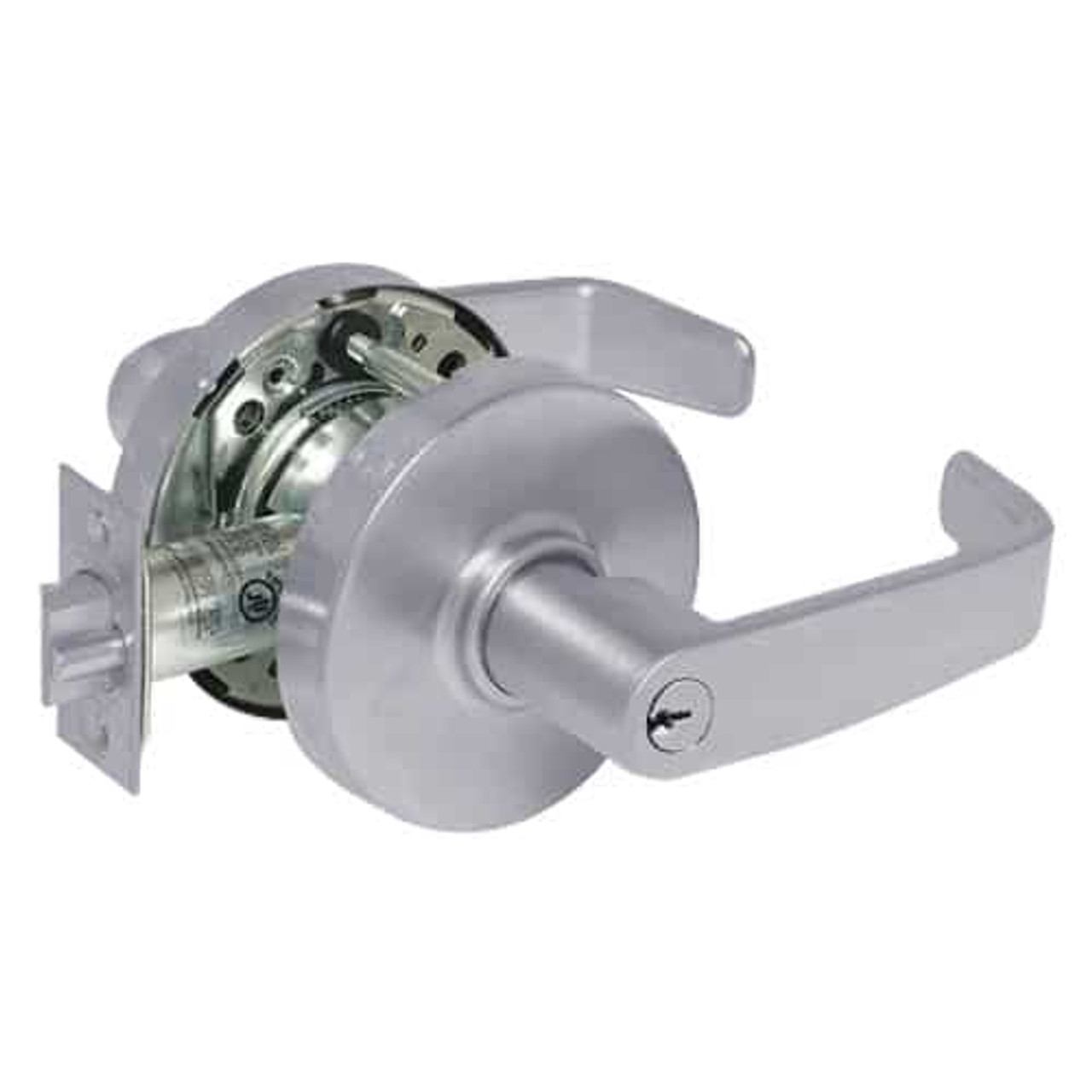

28-10G26-LL-26D Sargent 10 Line Cylindrical Storeroom Locks with L Lever Design and L Rose in Satin Chrome Finish

The Sargent 28-10G26-LL-26D Storeroom locks are designed to conform to national and state fire and handicapped requirements. The 10 Line bored lock is the standard for Storeroom applications such as medical, educational and municipal facilities. The 10 Line lock is a heavy duty cylindrical key-in-lever handle lockset that far exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards.

Storeroom: Latch by either lever; Key in either lever locks or unlocks both levers

Features and Benefits:

• Satin Chrome finish
• Strike: 808 curved lip ANSI strike
• Backset: 2-3/4" backset
• Handing: Non handed
• 4-7/8" Curved lip strike
• Latch: Stainless steel 1/2" (13mm) throw
• ANSI/BHMA: F91
• L-Lever design with L rose
• Double cylinder
• Two, nickel silver keys are included
• Cylinder: Brass, 6 pin, LA keyway standard
• Backsets: 2-3/4" (70mm) backset with 1-1/8" front (standard)
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection
• Door range: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
