Product Description

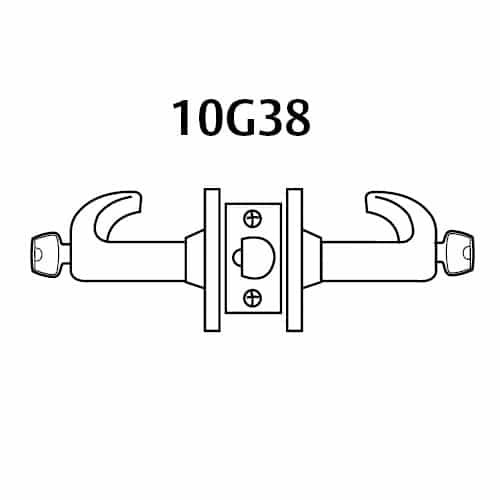

28-10G38-GL-10B Sargent 10 Line Cylindrical Classroom Locks with L Lever Design and G Rose in Oxidized Dull Bronze Finish

The Sargent 28-10G38-GL-10B Classroom locks are designed to conform to national and state fire and handicapped requirements. The 10 Line bored lock is the standard for institutional applications such as medical, educational and municipal facilities. The 10 Line lock is a heavy duty cylindrical key-in-lever handle lockset that far exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards.

Classroom Security lock: Latch by either lever unless outside lever is locked by key; Key in either lever locks or unlocks outside lever; Locked indication on inside rose standard with this function

Features and Benefits:

• Oxidized Dull Bronze finish
• Strike: 808 curved lip ANSI strike
• Backset: 2-3/4" backset
• Handing: Non handed
• ANSI A115.2 - 4-7/8" strike
• Latch: Stainless steel 1/2" (13mm) throw
• ANSI/BHMA: F110
• L-Lever design with G rose
• Double cylinder
• Two, nickel silver keys are included
• Cylinder: Brass, 6 pin, LA keyway standard
• Backsets: 2-3/4" (70mm) backset with 1-1/8" front (standard)
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection
• Door range: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
