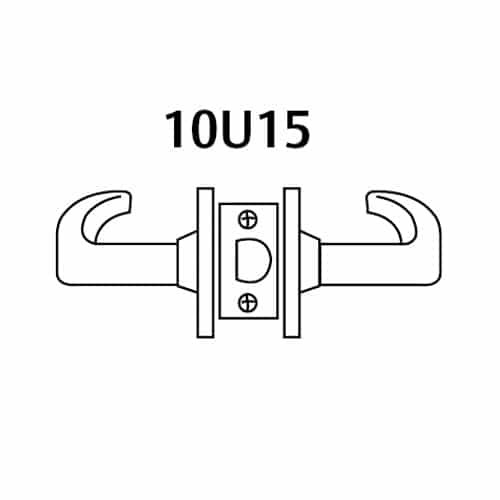

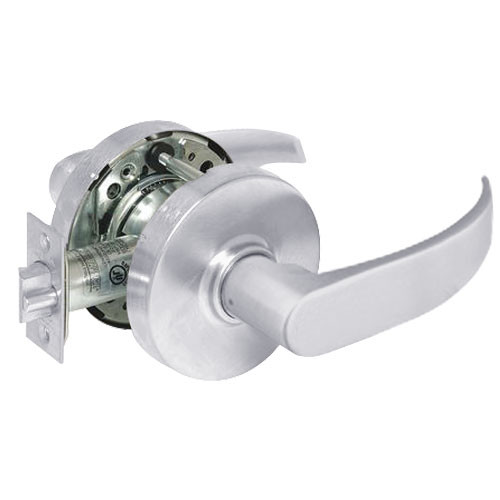

28-10U15-LP-26 Sargent 10 Line Cylindrical Passage Locks with P Lever Design and L Rose in Bright Chrome Finish

The Sargent 28-10U15-LP-26 Passage locks are designed to conform to national and state fire and handicapped requirements. The 10 Line bored lock is the standard for institutional applications such as medical, educational and municipal facilities. The 10 Line lock is a heavy duty cylindrical key-in-lever handle lockset that far exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards.

Passage lock: Latch by either lever

Features and Benefits:

• Bright Chrome finish
• Strike: 808 curved lip ANSI strike
• Backset: 2-3/4" backset
• Handing: Non handed
• 4-7/8" Curved lip strike
• Latch: Stainless steel 1/2" (13mm) throw
• ANSI/BHMA: F75
• P-Lever design with L rose
• Non keyed
• Backsets: 2-3/4" (70mm) backset with 1-1/8" front (standard)
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection
• Door range: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
