Product Description

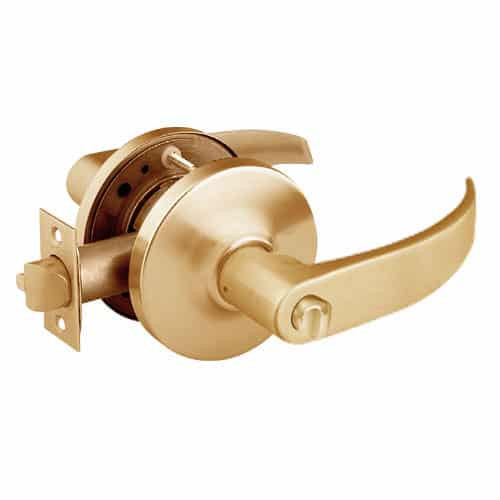

28-10U68-GP-10 Sargent 10 Line Cylindrical Hospital Privacy Locks with P Lever Design and G Rose in Dull Bronze Finish
The Sargent 28-10U68-GP-10 Hospital Privacy locks are designed to conform to national and state fire and handicapped requirements. The 10 Line bored lock is the standard for institutional applications such as medical, educational and municipal facilities. The 10 Line lock is a heavy duty cylindrical key-in-lever handle lockset that far exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards.
Hospital Privacy lock: Latch by either lever unless outside lever is locked by push button in inside lever; Turning inside lever or closing door releases button; Rotating thumbturn in outside lever unlocks the outside lever and releases the inside button.
Features and Benefits:
- Dull Bronze finish
- Strike: 808 curved lip ANSI strike
- Backset: 2-3/4" backset
- Handing: Non handed
- 4-7/8" Curved lip strike
- Latch: Stainless steel 1/2" (13mm) throw
- P-Lever design with G rose
- Non keyed
- Backsets: 2-3/4" (70mm) backset with 1-1/8" front (standard)
- Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection
- Door range: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
