Product Description

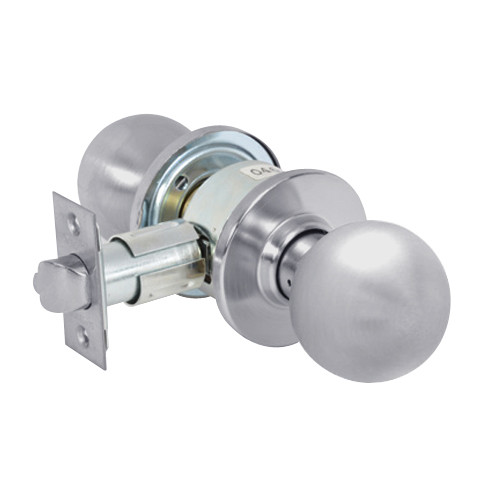

28-6U15-OB-26D Sargent 6 Line Series Knob Passage Locks with B Knob Design and O Rose in Satin Chrome Finish

The Sargent 28-6U15-OB-26D Passage locks is a standard duty knob lock for fine homes, apartments, hotels and commercial buildings. The 6 line series are certified to ANSI/BHMA A156.2 Series 4000 Grade 2.

Passage lock: Latch retracted by either konb.

Features and Benefits:

• Satin Chrome finish
• Minimum stile: 4" (102mm)
• Backset: 2-3/8" (60mm) x 1" (25mm) standard
• Handing: Non handed
• Strike: 4-7/8" Curved lip strike
• Latch: Brass 1/2" (13mm) throw
• ANSI/BHMA: F75
• B-Knob design with O rose
• Non keyed lock
• Door range: 1-3/8" (35mm) to 1-3/4" (44mm) only
