Product Description

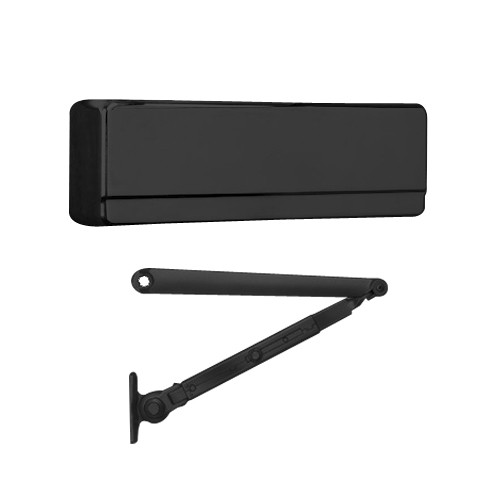

281-H-ED Sargent 281 Series Powerglide Cast Iron Door Closer with Regular Duty Hold Open Arm in Black Powder Coat Finish

The Sargent 281-H-ED heavy duty door closers are designed for interior and exterior doors with quality and flexibility to meet virtually every application. All 281 Series closers are equipped with fluid that allows the units to operate effectively in extreme temperatures without readjustment. The spring size is adjustable to fit any application. The 281 Series door closers are certified to the ANSI/BHMA A156.4 Grade 1 requirements.

The standard application of the 281 door closer is the most common providing high degree of door control and range of power adjustment. The closer is mounted on the pull side of the door with the arm mounted on the face of the frame. When the door opens, the arm passes over the top of the door.

Features and Benefits:

• Black Powder Coat finish
• Exceeds 25 million cycles
• Handing: Non handed
• Full rack and pinion construction
• 1-1/2" diameter piston for superior door control
• Self sticking templates supplied for most applications
• Heavy duty mounting bracket for easy installation of full size iron closer
• Closing speed, latching speed and backcheck shall be controlled by key operated valves
• H - Hold open arm
• Forged Steel Arm 11-1/4" (286mm) long
• Friction type holder easily adjustable
• Permits 180° door opening
• Holds open from 80° - 180°
• High impact non-corrosive plastic covers standard
• Cover secured by machine screws
• Fasteners: Machine screws and self tapping screws provided for closer and arm
