Product Description

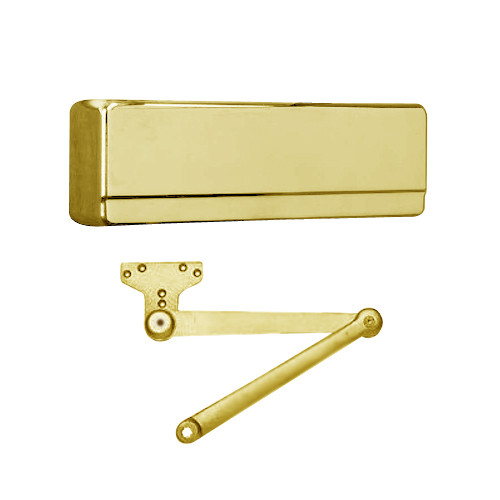

281-P10-EAB Sargent 281 Series Powerglide Cast Iron Door Closer with Heavy Duty Parallel Arm in Brass Powder Coat Finish
The Sargent 281-P10-EAB heavy duty door closers are designed for interior and exterior doors with quality and flexibility to meet virtually every application. All 281 Series closers are equipped with fluid that allows the units to operate effectively in extreme temperatures without readjustment. The spring size is adjustable to fit any application. The 281 Series door closers are certified to the ANSI/BHMA A156.4 Grade 1 requirements.
Parallel arm application - The 281 closer is mounted on the push side of the door. As the door opens, the closer swings with the door and gives full headroom in the door opening. Other advantages are that the closer arm does not project into the room, the frame can be quite narrow and the door can be swung open much further than in Top Jamb Applications. However, the closing force is not as great.
Features and Benefits:
- Brass Powder Coat finish
- Exceeds 25 million cycles
- Handing: Non handed
- Full rack and pinion construction
- 1-1/2" diameter piston for superior door control
- Self sticking templates supplied for most applications
- Heavy duty mounting bracket for easy installation of full size iron closer
- Closing speed, latching speed and backcheck shall be controlled by key operated valves
- P10 Heavy duty parallel arm application
- 2 piece rigid arms for ease of installation
- Two mounting positions for 120° and 180° maximum door openings
- Forged steel arm and cast iron foot bracket for strength and durability
- For use in high traffic and abusive environments
- High impact non-corrosive plastic covers standard
- Cover secured by machine screws
- Fasteners: Machine screws and self tapping screws provided for closer and arm
