Product Description

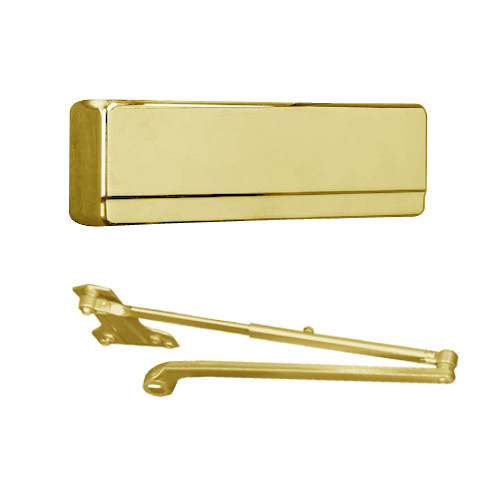

281-P9-EAB Sargent 281 Series Powerglide Cast Iron Door Closer with Regular Duty Parallel Arm in Brass Powder Coat Finish
The Sargent 281-P9-EAB heavy duty door closers are designed for interior and exterior doors with quality and flexibility to meet virtually every application. All 281 Series closers are equipped with fluid that allows the units to operate effectively in extreme temperatures without readjustment. The spring size is adjustable to fit any application. The 281 Series door closers are certified to the ANSI/BHMA A156.4 Grade 1 requirements.
Parallel arm application - The 281 closer is mounted on the push side of the door. As the door opens, the closer swings with the door and gives full headroom in the door opening. Other advantages are that the closer arm does not project into the room, the frame can be quite narrow and the door can be swung open much further than in Top Jamb Applications. However, the closing force is not as great.
Features and Benefits:
- Brass Powder Coat finish
- Exceeds 25 million cycles
- Handing: Non handed
- Full rack and pinion construction
- 1-1/2" diameter piston for superior door control
- Self sticking templates supplied for most applications
- Heavy duty mounting bracket for easy installation of full size iron closer
- Closing speed, latching speed and backcheck shall be controlled by key operated valves
- P9 Regular parallel arm application
- For use in moderate duty institutional applications
- 120° Maximum door opening
- Double jointed arm provides flexibility in the vertical mounting position of closer
- 4-3/8" minimum door top rail with a minimum of 6-7/8" unobstructed door top rail
- High impact non-corrosive plastic covers standard
- Cover secured by machine screws
- Fasteners: Machine screws and self tapping screws provided for closer and arm
