Product Description

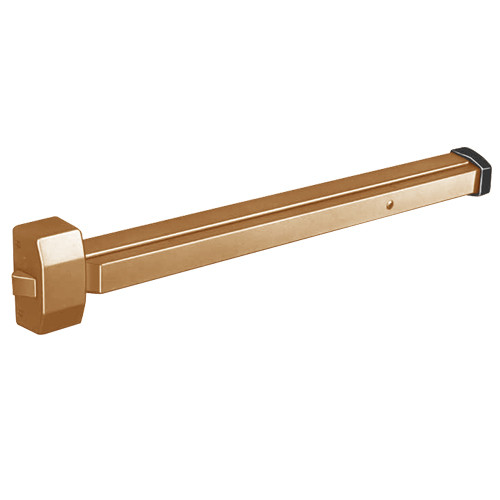

2828E-EP Sargent 20 Series Reversible Rim Exit Device in Sprayed Satin Bronze Finish

The Sargent 2828E-EP exit device are used for the single and double door application. The 2828 Multi-function rim exit device is the perfect stocking device. The 2828 series exit device are certified to the ANSI/BHMA Standard 156.3, Grade 1.

Features and Benefits:

• Sprayed Satin Bronze finish
• Door thickness: 1-3/4" (44) thick standard
• Handing: Non handed
• Steel endcaps and covers
• Non fire rated exit device
• Rail assembly: Roll formed steel
• Latchbolt: Stainless steel 3/4" (19mm) throw

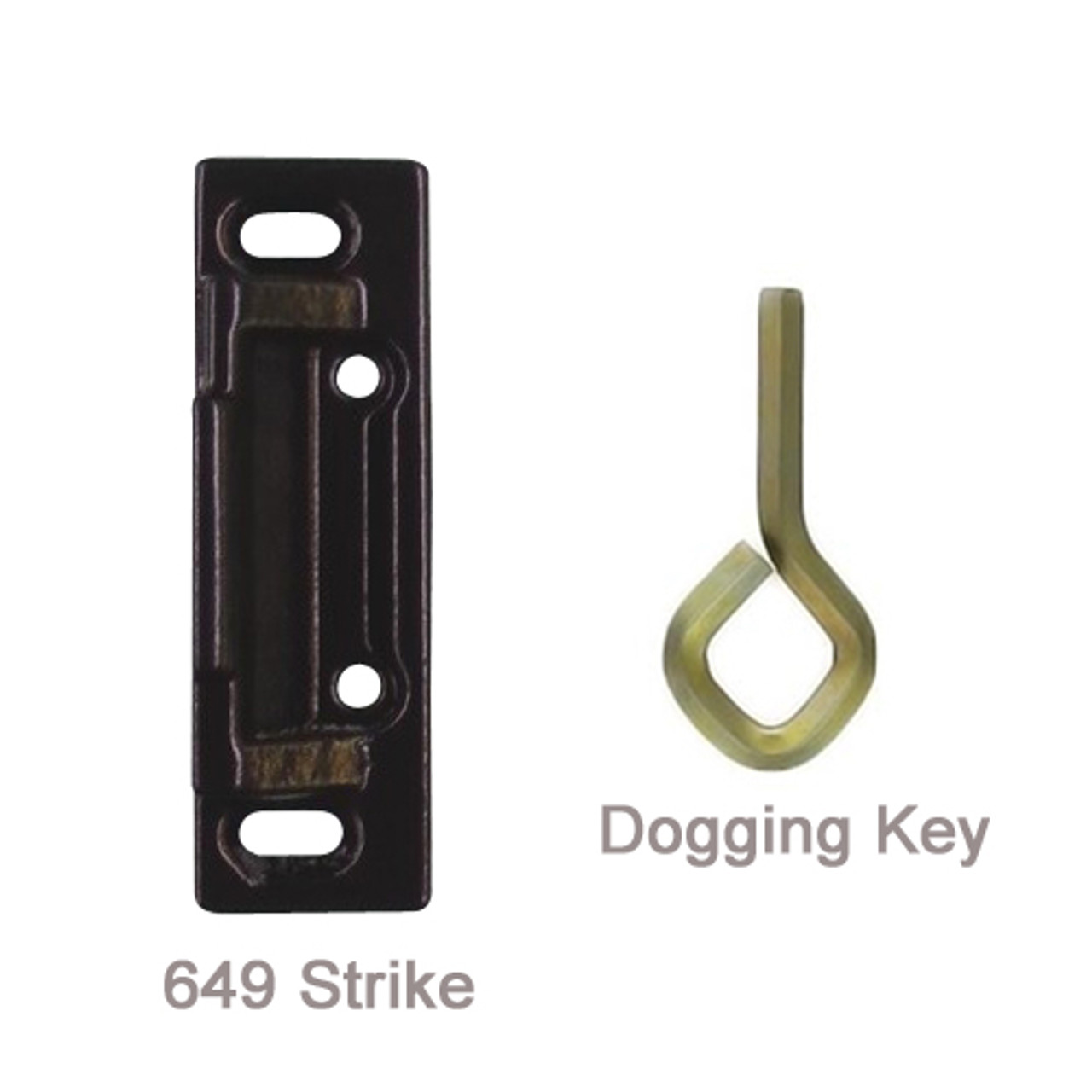

• Strike: 649 packed standard
• Dogging feature: Allen-type key furnished standard
• Rail sizes for doors: 24' through 32" (61cm through 81cm)
• Chassis mounted unit construction assures easy installation and maintenance
