Product Description

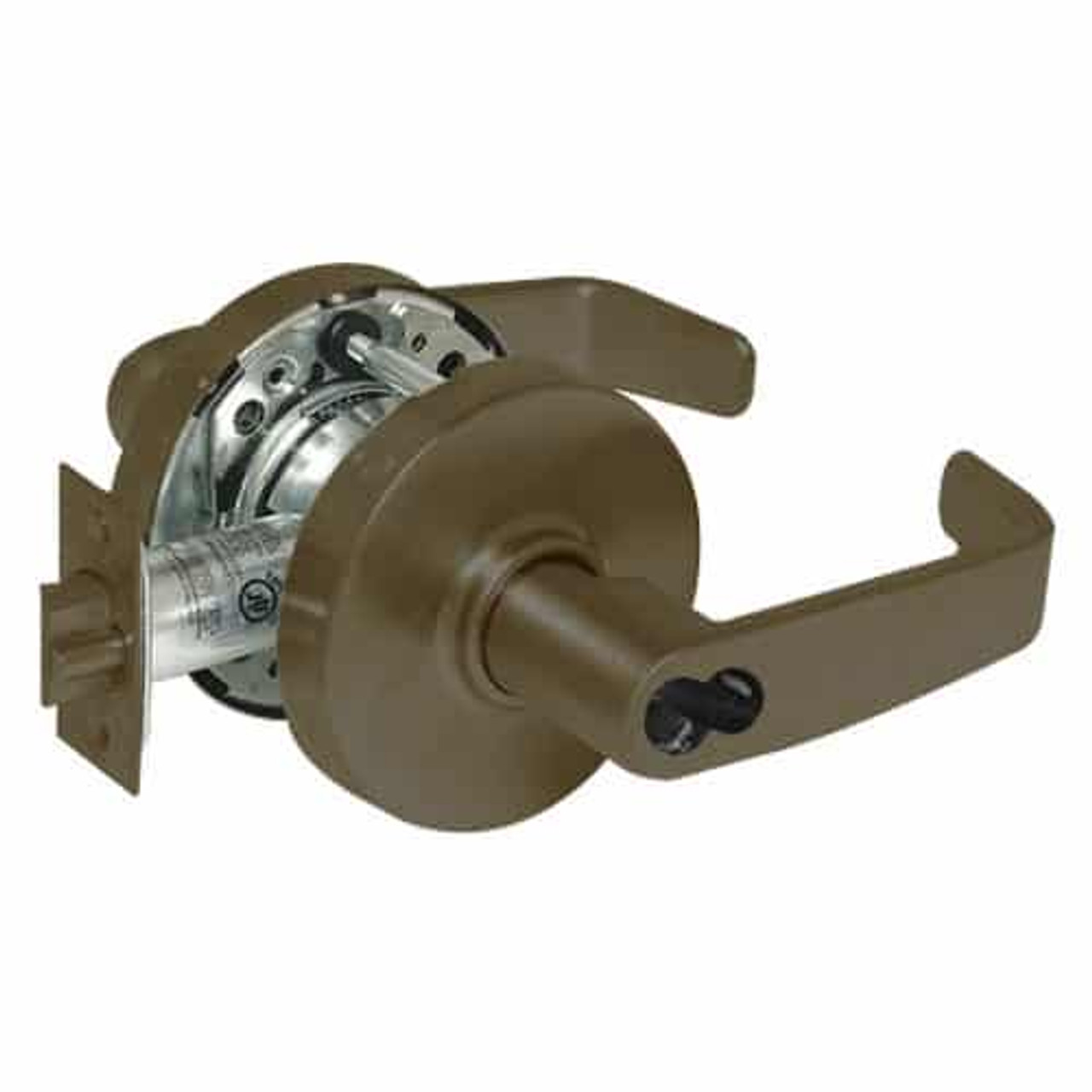

2860-10G17-LL-10B Sargent 10 Line Cylindrical Institutional Locks with L Lever Design and L Rose Prepped for LFIC in Oxidized Dull Bronze Finish

The Sargent 2860-10G17-LL-10B Institutional locks are designed to conform to national and state fire and handicapped requirements. The 10 Line bored lock is the standard for institutional applications such as medical, educational and municipal facilities. The 10 Line lock is a heavy duty cylindrical key-in-lever handle lockset that far exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards.

Utility, Asylum or Institutional lock: Both levers rigid at all times; Latch by key either side; Use only on rooms with more than one exit

Features and Benefits:

• Oxidized Dull Bronze finish
• Strike: 808 curved lip ANSI strike
• Backset: 2-3/4" backset
• Handing: Non handed
• ANSI A115.2 - 4-7/8" strike
• Latch: Stainless steel 1/2" (13mm) throw
• ANSI/BHMA: F87
• L-Lever design with L rose
• Double cylinder
• Disposable plastic Core provided. (Permanent Cores ordered separately)
• Accepts Sargent large format interchangeable cores
• Backsets: 2-3/4" (70mm) backset with 1-1/8" front (standard)
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection
• Door range: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
