Product Description

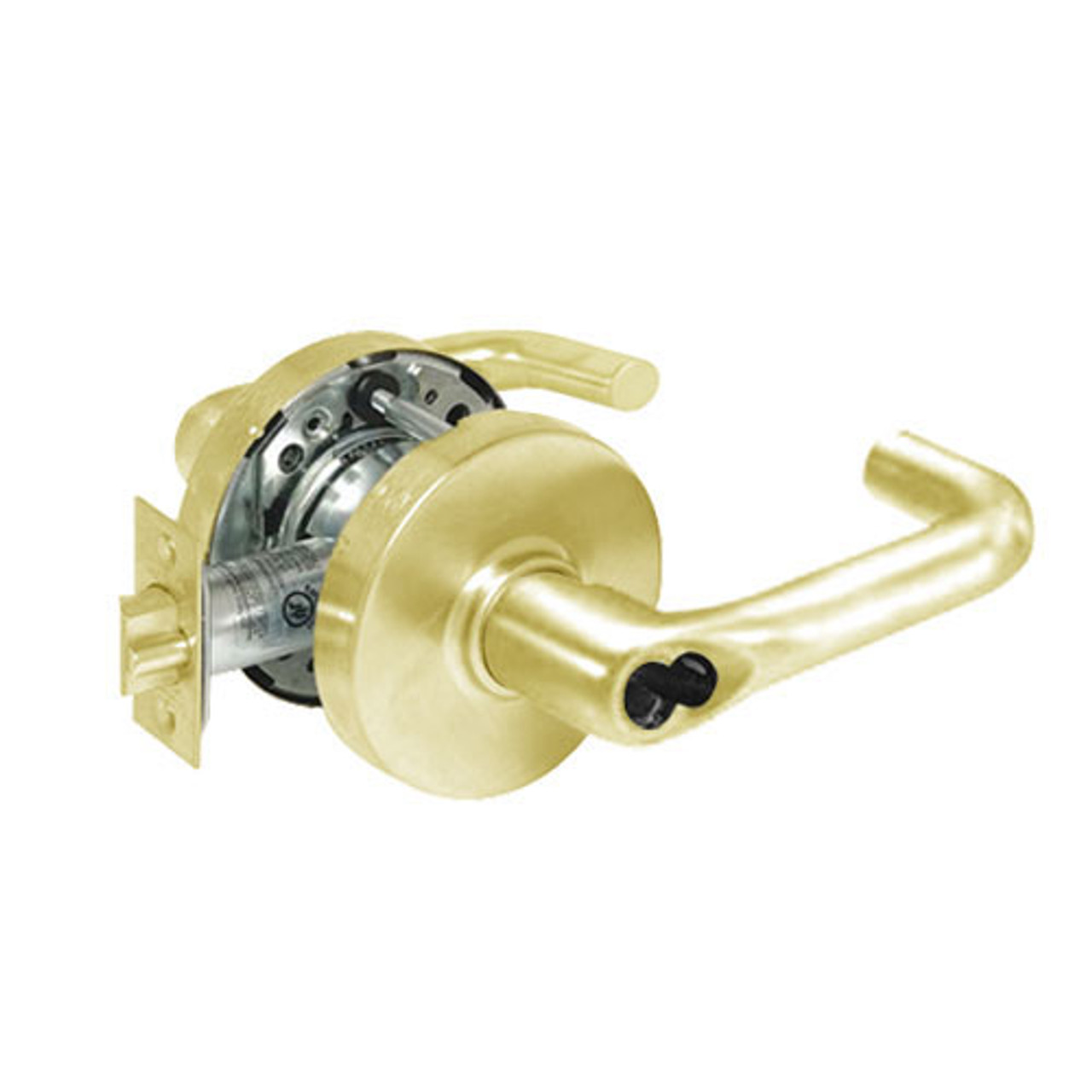

2860-10G24-LJ-03 Sargent 10 Line Cylindrical Entry Locks with J Lever Design and L Rose Prepped for LFIC in Bright Brass Finish
The Sargent 2860-10G24-LJ-03 Entry locks are designed to conform to national and state fire and handicapped requirements. The 10 Line bored lock is the standard for institutional applications such as medical, educational and municipal facilities. The 10 Line lock is a heavy duty cylindrical key-in-lever handle lockset that far exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards.
Entry lock: Latch by either lever unless outside lever is locked by push button in inside lever; Push button released by key or turning inside lever; Key in outside lever retracts latch when outside lever is locked and releases inside push button.
Features and Benefits:
- Bright Brass finish
- Strike: 808 curved lip ANSI strike
- Backset: 2-3/4" backset
- Handing: Non handed
- ANSI A115.2 - 4-7/8" strike
- Latch: Stainless steel 1/2" (13mm) throw
- ANSI/BHMA: F82
- J-Lever design with l rose
- Single cylinder
- Disposable plastic Core provided. (Permanent Cores ordered separately)
- Accepts Sargent large format interchangeable cores
- Backsets: 2-3/4" (70mm) backset with 1-1/8" front (standard)
- Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection
- Door range: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
