Product Description

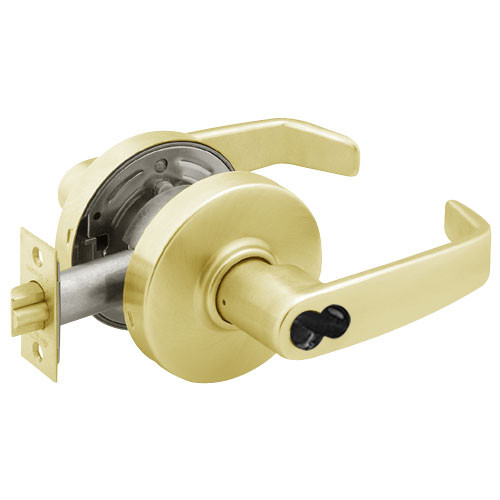

2860-7G04-LL-04 Sargent 7 Line Cylindrical Storeroom/Closet Locks with L Lever Design and L Rose Prepped for LFIC in Satin Brass Finish

The Sargent 2860-7G04-LL-04 Storeroom/Closet locks are designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities and public buildings. The 7 Line key-in-lever locks are certified to ANSI A156.2 Series 4000 - Grade 2.

Storeroom or Closet lock: Deadlocking latch; Latch by lever inside or key outside; Outside lever rigid at all times.

Features and Benefits:

• Satin Brass finish
• Strike: 808 curved lip ANSI strike
• Backset: 2-3/4" backset
• Handing: Non handed
• 4-7/8" Curved lip strike
• Latch: Brass 1/2" (13mm) throw
• ANSI/BHMA: F86
• L-Lever design with L rose
• Single cylinder
• Accepts Sargent large format interchangeable cores
• Disposable plastic Core provided. (Permanent Cores ordered separately)
• Door range: 1-3/4" (44mm) thick door standard
