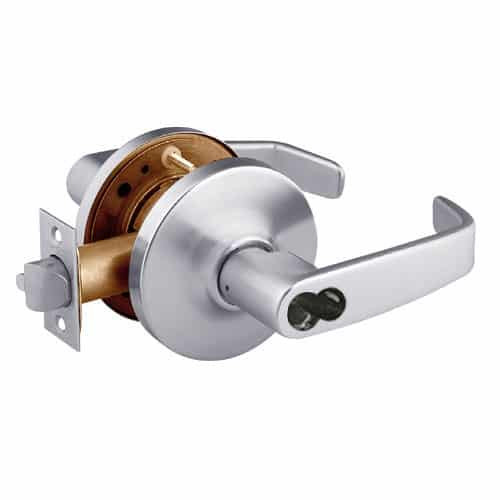

2870-10G05-GL-26D Sargent 10 Line Cylindrical Entry/Office Locks with L Lever Design and G Rose Prepped for SFIC in Satin Chrome Finish
The Sargent 2870-10G05-GL-26D Entry/Office locks are designed to conform to national and state fire and handicapped requirements. The 10 Line bored lock is the standard for institutional applications such as medical, educational and municipal facilities. The 10 Line lock is a heavy duty cylindrical key-in-lever handle lockset that far exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards.
Entry/Office lock: Latch by either lever unless outside lever is locked by push/turn button in inside lever; Push button released by key outside or lever inside; Key retracts latch when outside lever is locked
Features and Benefits:
- Satin Chrome finish
- Strike: 808 curved lip ANSI strike
- Backset: 2-3/4" backset
- Handing: Non handed
- ANSI A115.2 - 4-7/8" strike
- Latch: Stainless steel 1/2" (13mm) throw
- ANSI/BHMA: F109
- L-Lever design with G rose
- Single cylinder
- Core is not included
- Accepts 6 or 7 pin small format interchangeable cores
- Backsets: 2-3/4" (70mm) backset with 1-1/8" front (standard)
- Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection
- Door range: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
