Product Description

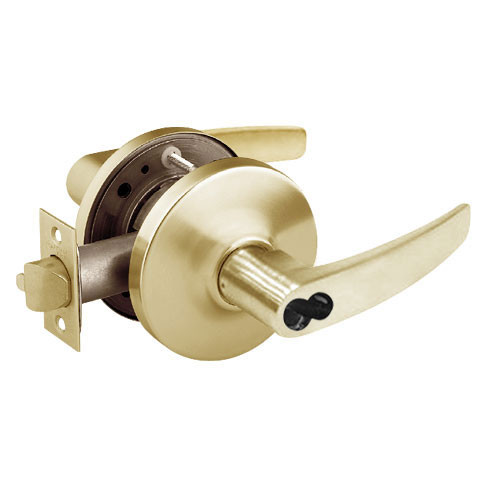

2870-10G37-GB-04 Sargent 10 Line Cylindrical Classroom Locks with B Lever Design and G Rose Prepped for SFIC in Satin Brass Finish

The Sargent 2870-10G37-GB-04 Classroom locks are designed to conform to national and state fire and handicapped requirements. The 10 Line bored lock is the standard for institutional applications such as medical, educational and municipal facilities. The 10 Line lock is a heavy duty cylindrical key-in-lever handle lockset that far exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards.

Classroom lock: Latch by either lever unless outside lever is locked by key; Key in outside lever locks or unlocks outside lever and retracts latch; Inside lever always operative

Features and Benefits:

• Satin Brass finish
• Strike: 808 curved lip ANSI strike
• Backset: 2-3/4" backset
• Handing: Non handed
• ANSI A115.2 - 4-7/8" strike
• Latch: Stainless steel 1/2" (13mm) throw
• ANSI/BHMA: F84
• B-Lever design with G rose
• Single cylinder
• Core is not included
• Accepts 6 or 7 pin small format interchangeable cores
• Backsets: 2-3/4" (70mm) backset with 1-1/8" front (standard)
• Latch bolt: 2 piece stainless steel anti-friction bolt 3/4" projection
• Door range: 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
