Product Description

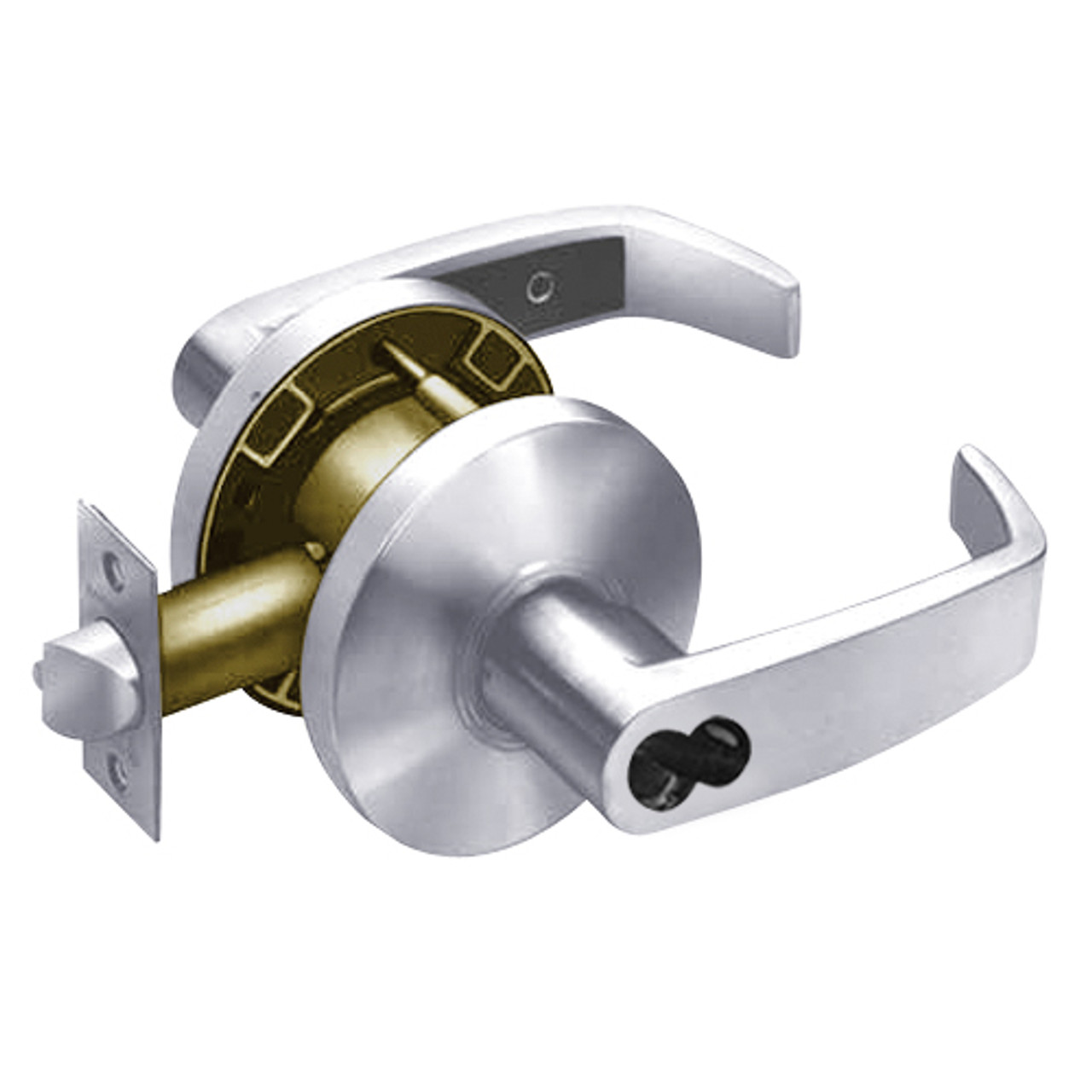

2870-65G05-KL-26D Sargent 6500 Series Cylindrical Entrance/Office Locks with L Lever Design and K Rose Prepped for SFIC in Satin Chrome Finish

The Sargent 2870-65G05-KL-26D Entrance/Office locks are designed for standard duty commercial interior and exterior applications in offices, apartments, hotels and motels. A standard duty key-in-lever lock designed to exceed the requirements of ANSI/BHMA A156.2 Series 4000 Grade 2.

Entrance/Office lock: Latch by either lever unless outside lever is locked by push/turn button in inside lever; Push button released by key outside or lever inside; Key retracts latch when outside lever is locked

Features and Benefits:

• Satin Chrome finish
• Minimum stile: 4-1/2" (114mm)
• Backset: 2-3/4" backset standard
• Handing: Universal, non handed
• Strike: 4-7/8" Curved lip strike
• Latch: Brass 1/2" (13mm) throw
• ANSI/BHMA: F109
• L-Lever design with K rose
• Single cylinder
• Accepts 6 or 7 pin small format interchangeable cores
• Core is not included
• Door range: 1-3/8" (35mm) to 1-3/4" (44mm) only
