Product Description

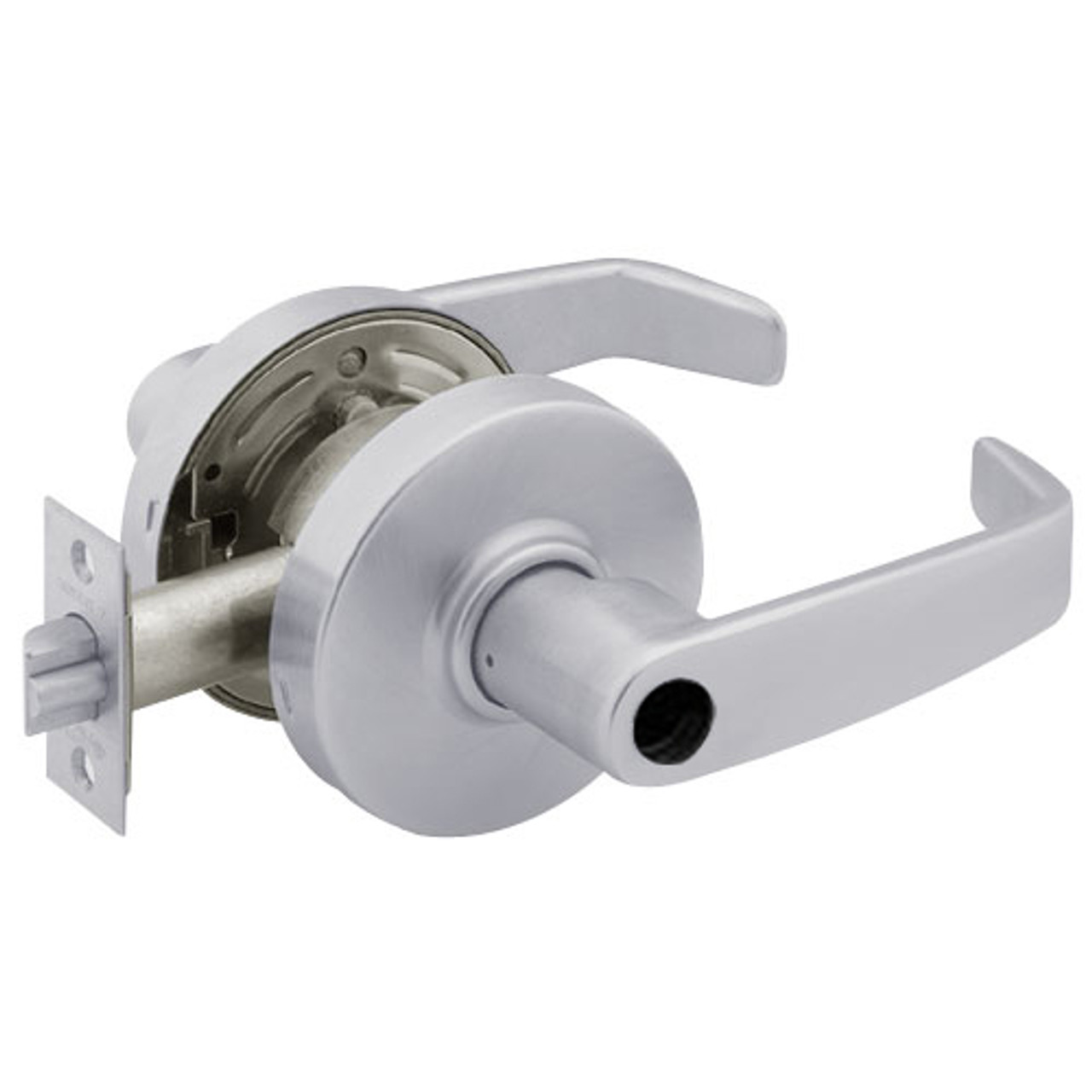

28LC-7G05-LL-26D Sargent 7 Line Cylindrical Entrance/Office Locks with L Lever Design and L Rose Less Cylinder in Satin Chrome Finish

The Sargent 28LC-7G05-LL-26D Entrance/Office locks are designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities and public buildings. The 7 Line key-in-lever locks are certified to ANSI A156.2 Series 4000 - Grade 2.

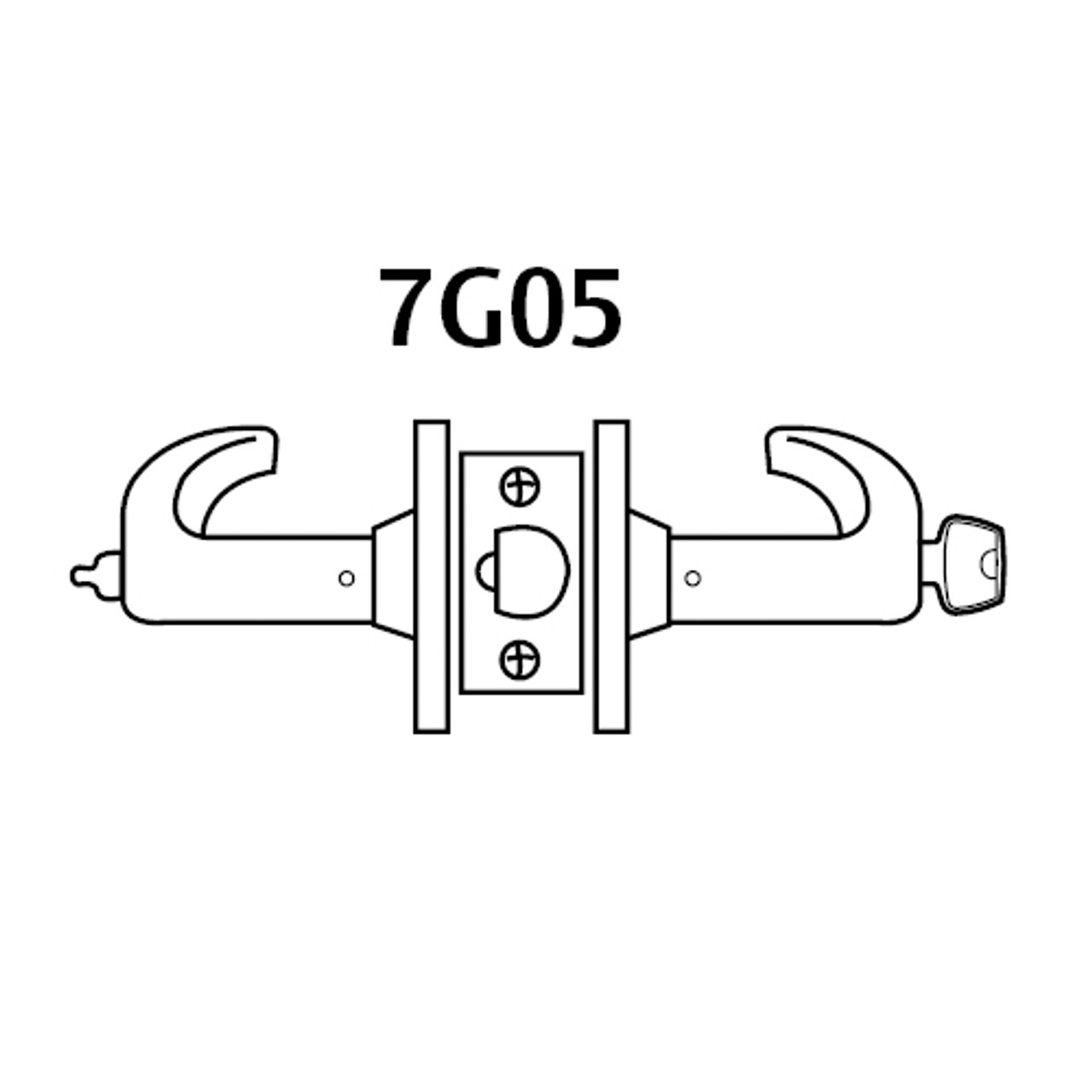

Entrance/Office lock: Latch by either lever unless outside lever is locked by push/turn button in inside lever; Push button released by key outside or lever inside; Key retracts latch when outside lever is locked

Features and Benefits:

• Satin Chrome finish
• Strike: 808 curved lip ANSI strike
• Backset: 2-3/4" backset
• Handing: Non handed
• 4-7/8" Curved lip strike
• Latch: Brass 1/2" (13mm) throw
• ANSI/BHMA: F109
• L-Lever design with L rose
• Single cylinder
• No cylinders are included with this lock
• Door range: 1-3/4" (44mm) thick door standard
