Product Description

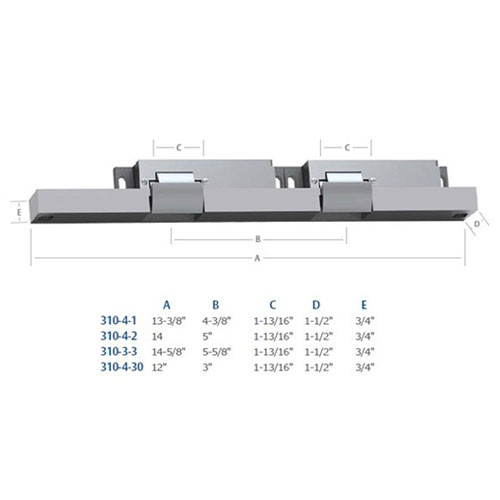

310-4-30-24D-629 Folger Adam 310-4-X Series Fail Secure Electric Strike for Surface Vertical Rod Exit Devices in Bright Stainless Steel Finish

The Folger Adam 310-4-30-24D-629 series is used for both leaves of a pair of doors when spacing of the vertical rod is between 2-5/8" and 3-3/8". The 310-4-x vertical surface mounted series is designed for heavy duty applications on single or double doors. These electric strike series are certified to ANSI/BHMA A156.31, Grade 1 and all stainless steel construction of this device makes it ideal for high abuse applications. This line of electric strikes will accommodate rim exit devices with a swinging, Pullman style latchbolt.

Features and Benefits:

• Bright Stainless Steel finish
• Static strength: 1,500 lbs
• Dynamic strength: 70 ft-lbs
• RoHS compliant
• Endurance rating: 500,000 cycles
• PK keeper standard
• Non-handed
• Fail secure standard
• Plug-in connector
• Pullman keeper
• Tamper-resistant, heavy duty construction
• Voltage: .25 Amps at 24 VDC
• UL 1034, burglary-resistant listed
• Constructed entirely of stainless steel for strength and corrosion resistance
• Adjustable keeper to allow for door and frame misalignment
• The latchbolt of the exit device must be the "Pullman" or beveled type
• The bottom rod of the exit device must be removed or made inoperative
