Product Description

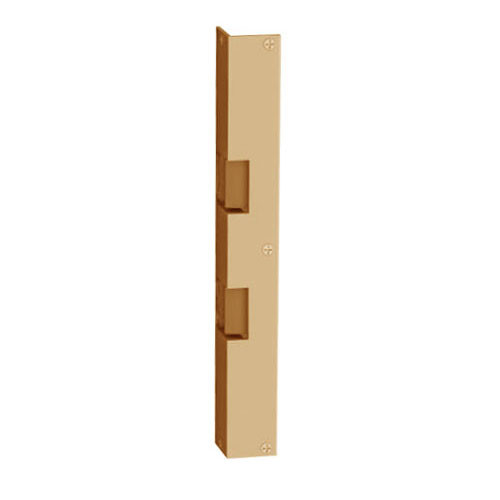

310-6-2-12D-612 Folger Adam 310-6 Series Fail Secure Electric Strike for Concealed Vertical Rod Exit Devices in Satin Bronze Finish

The Folger Adam 310-6-2-12D-612 series is used for both leaves of a pair of doors when spacing of the vertical rods is between 4-5/8" and 5-3/8" and is designed for heavy duty applications on single or double doors. These electric strike series are certified to ANSI/BHMA A156.31, Grade 1 and all stainless steel construction of this device makes it ideal for high abuse applications. This line of electric strikes will accommodate rim exit devices with a swinging or pullman style latchbolt.

Features and Benefits:

• Satin Bronze finish
• Static strength: 1,500 lbs
• Dynamic strength: 70 ft-lbs
• RoHS compliant
• Endurance rating: 500,000 cycles
• PK keeper standard
• Non-handed
• Fail secure standard
• Plug-in connector
• Tamper-resistant, heavy duty construction
• Voltage: .51 Amps at 12 VDC
• UL 1034, burglary-resistant listed
• Constructed entirely of stainless steel for strength and corrosion resistance
• Adjustable keeper to allow for door and frame misalignment
• The latchbolt of the exit device must be the "Pullman" or beveled type
• The bottom rod of the exit device must be removed or made inoperative
