Product Description

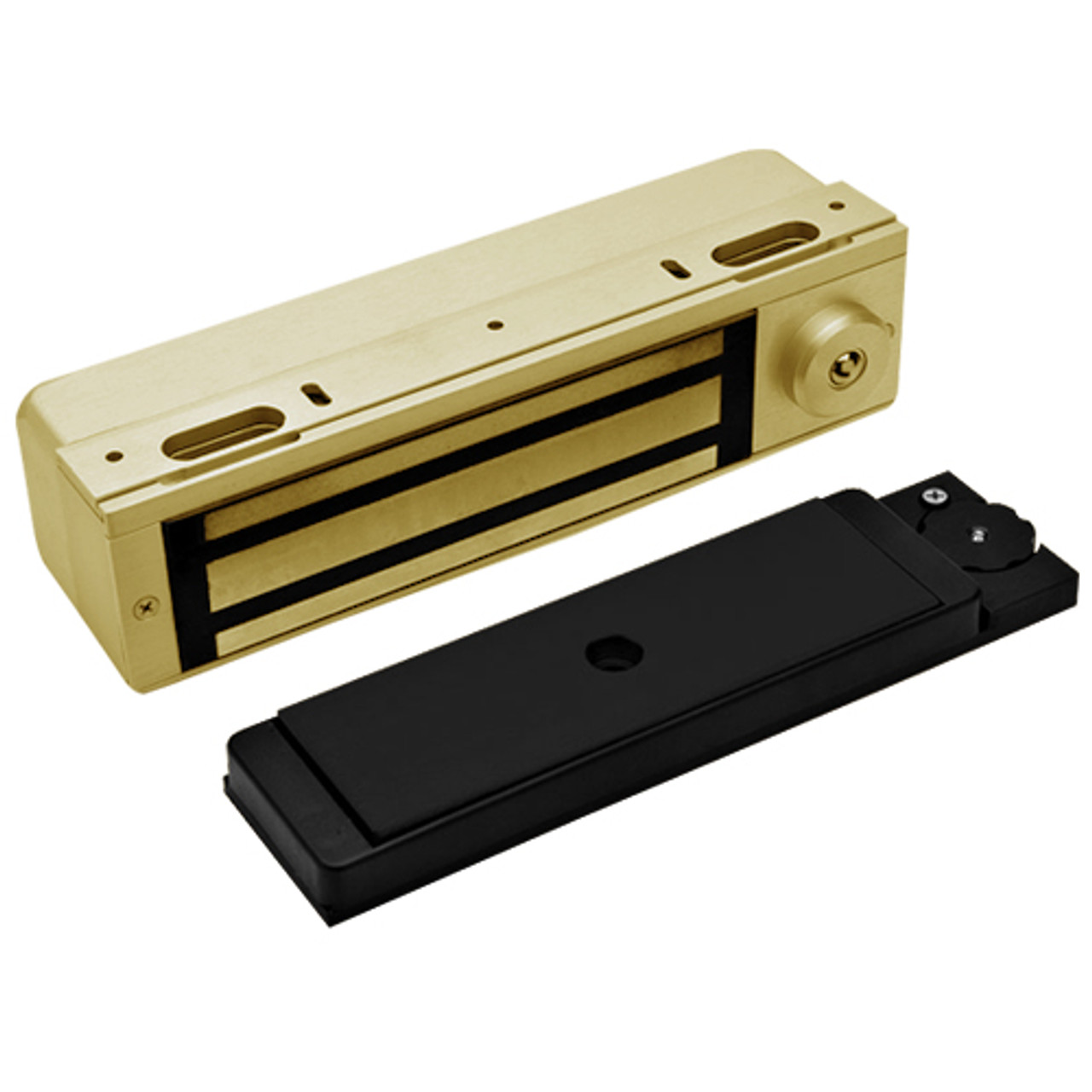

3101C-DSM-US4 DynaLock 3101C Series Delay Egress Electromagnetic Lock for Single Outswing Door with DSM in Satin Brass

The Dynalock 3101C-DSM-US4 series surface mounted electromagnetic lock is used with the single outswing door. The 3101C Series is designed to satisfy life safety codes and high security needs at the same time. The next generation 3101C system offers better technology, resistance to electrical surges, and a virtually maintenance free sensing system.

Features and Benefits:

• Satin Brass finish
• For single outswing door
• Input voltage: 12/24 VAC/VDC Auto sensing power input
• Lock size: 3"D x 2-3/4"H x 11"L
• Holding force: 1500 lbs
• Prevent unauthorized exits
• Completely self contained
• Up to 49% reduced current draw
• Field re-programmable sequencing parameters
• Door status switch - Signals door closed or ajar.
