Product Description

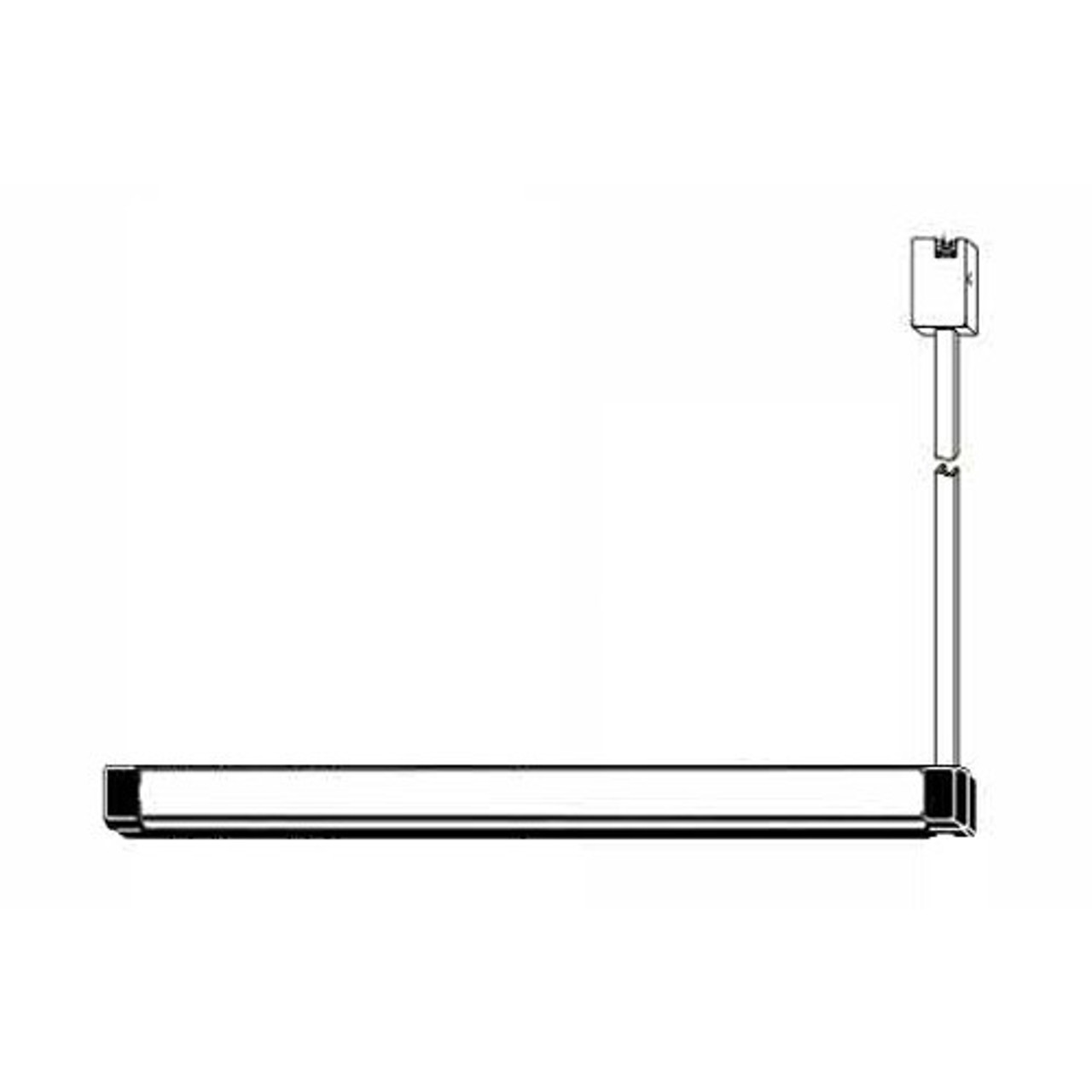

3111W-LRM-42-628 Adams Rite Fire-rated Surface Vertical Rod Exit Device in Clear Anodized Finish

The 3111W-LRM-42-628 series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.

Benefits and Features:

• Clear Anodized Pushbar Finish
• Pushbar Length: 42 inches
• Bar Height: Standard model adjusts from 30" to 44"
• Electric Latch Retraction
• Fire Rated
• Door Height: Standard model fits up to 8 ft door with bar height at 40"- 44"
• Door Thickness: Suits 1-3/4" standard up to 2-1/4"
• Stile Width: Minimum 3-3/4" stile
• Fire rating: 1-1/2 Hour
• Door type: Hollow metal doors
• Projection: 2-15/16" when fully projected, 1-15/16" when dogged
• Non-handed operation and lever entry trim is field reversible
• Patented top latching mechanism interlocks the door to frame
• Strong and durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install with clean and unobtrusive design
• Top rod only for wood doors
• Grade 1 strength
• Max Size Single Doors: 4'0" x 8'0"
• Max Size Pairs and Double Egress: 8'0" x 8'0"
• Single switch monitoring feature
• The LR option uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device
• 5 year limited manufacturer's warranty is included
