Product Description

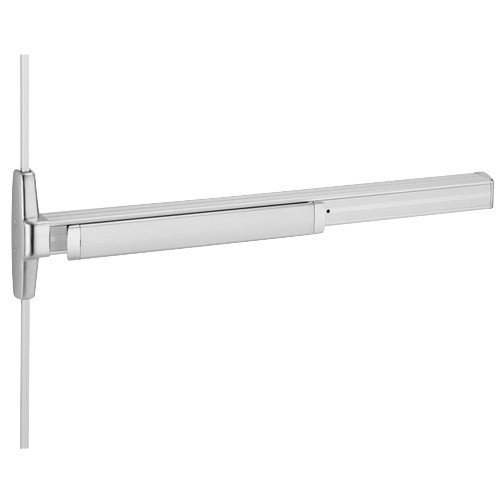

3327A-EO-F-US28-2 Von Duprin 3327A Series Fire Rated Vertical Rod Exit Device in Anodized Aluminum Finish

The Von Duprin 3327A-EO-F-US28-2 series of Exit Device for all types of double doors up to 8' x 10' (2438mm x 2540mm) is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3327A Vertical Rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3327A Series has a "grooved mechanism case"

Features and Benefits:

• Anodized Aluminum Finish
• ANSI Function: 01
• Exit only - No outside trim
• It fits door stiles as narrow as 2-3/16" (56mm) door size
• Device lengths: 2 feet (610 mm) i.e. 2' device for 2' door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3327A Series exit devices are UL listed for fire exit hardware and are ANSI A156.3, 2001, Grade1 certified
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
• Strike: Top - 299F and 304L unfinished strike included as always
• Cylinders are not included
• Device centerline from finished floor: 39-13/16" (1006mm)
