Product Description

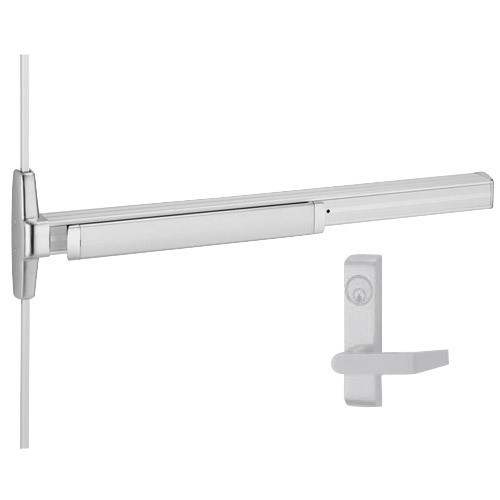

3327A-L-F-US28-2-RHR Von Duprin 3327A Series with Right Handing 360L Lever Fire Rated Vertical Rod Exit Device in Anodized Aluminum Finish
The Von Duprin 3327A-L-F-US28-2-RHR series of Exit Device for all types of double doors up to 8' x 10' (2438mm x 2540mm) is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3327A Vertical Rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.
The 3327A Series has a "grooved mechanism case"
Features and Benefits:
- Anodized Aluminum Finish
- Lever trim - key locks and unlocks
- Handing: Right hand-reverse
- ANSI Function: 08 or 09 field selectable
- It fits door stiles as narrow as 2-3/16" (56mm) door size
- Device lengths: 2 feet (610 mm) i.e. 2' device for 2' door size
- Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
- Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
- All 3327A Series exit devices are UL listed for fire exit hardware
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
- Strike: Top - 299F and 304L unfinished strike included as always
- Cylinders are not included
- Includes 360L standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
- Device centerline from finished floor: 39-13/16" (1006mm)
