Product Description

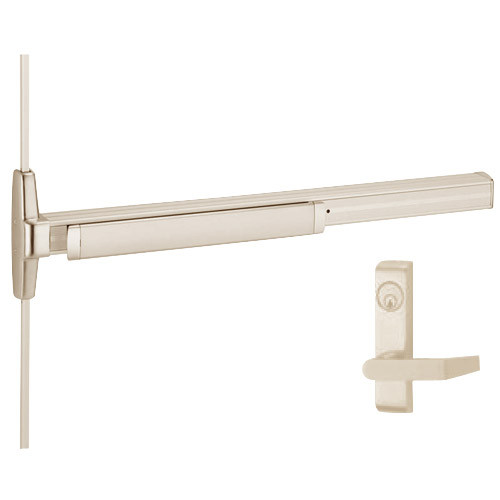

3327A-L-US4-2-LHR Von Duprin 3327A Series with Left Handed 360L Lever Non Fire Rated Vertical Rod Exit Device in Satin Brass Finish
This device is for a 24" door
The Von Duprin 3327A-L-US4-2-LHR series of Exit Device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3327A Vertical Rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.
The 3327A Series has a "grooved mechanism case"
Features and Benefits:
- Satin Brass Finish
- Lever trim - key locks and unlocks
- Handing: Left hand-reverse
- ANSI Function: 08 or 09 field selectable
- It fits door stiles as narrow as 1-3/4" (44mm) door size
- Device lengths: 2 feet (610mm) i.e 2' device for 2' door size
- Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
- Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
- All 3327A Series exit devices are UL listed for panic hardware
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
- Strike: Top - 266 strike dull black, bottom - 248L4 and 304L unfinished strike included as always
- Hex key dogging feature standard
- Includes 360L standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
- Device centerline from finished floor: 39-13/16" (1006mm)
