Product Description

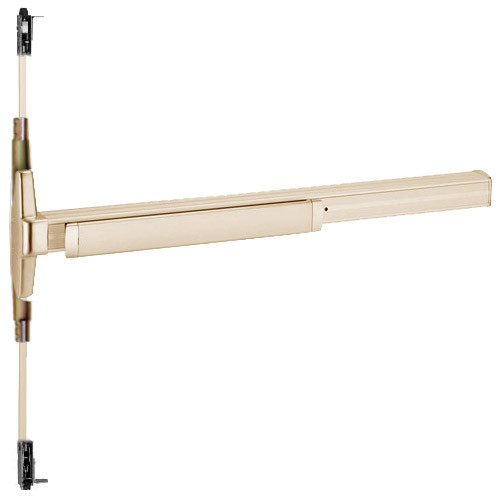

3347A-EO-F-US10-3 Von Duprin 3347A Series Fire Rated Vertical Rod Exit Device in Satin Bronze Finish

This device is for a 36" door

The Von Duprin 3347A-EO-F-US10-3 series of Exit Device for all types of double doors up to 8' x 10' (2438mm x 2540mm) is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3347A concealed vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3347A Series has a "grooved mechanism case"

Features and Benefits:

• Satin Bronze Finish
• ANSI Function: 01
• Exit only - No outside trim
• It fits door stiles as narrow as 3-1/2" (90mm) door size
• Device lengths: 3 feet (914mm) i.e 3' device for 2'4" - 3' door (660mm to 914 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3347A Series exit devices are UL listed for fire exit hardware and are ANSI A156.3, 2001, Grade1 certified
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
• Strike: Top - 388 unfinished strike and Bottom - 385A unfinished strike included as always
• Cylinders are not included
• Device centerline from finished floor: 39-13/16" (1006mm)
