Product Description

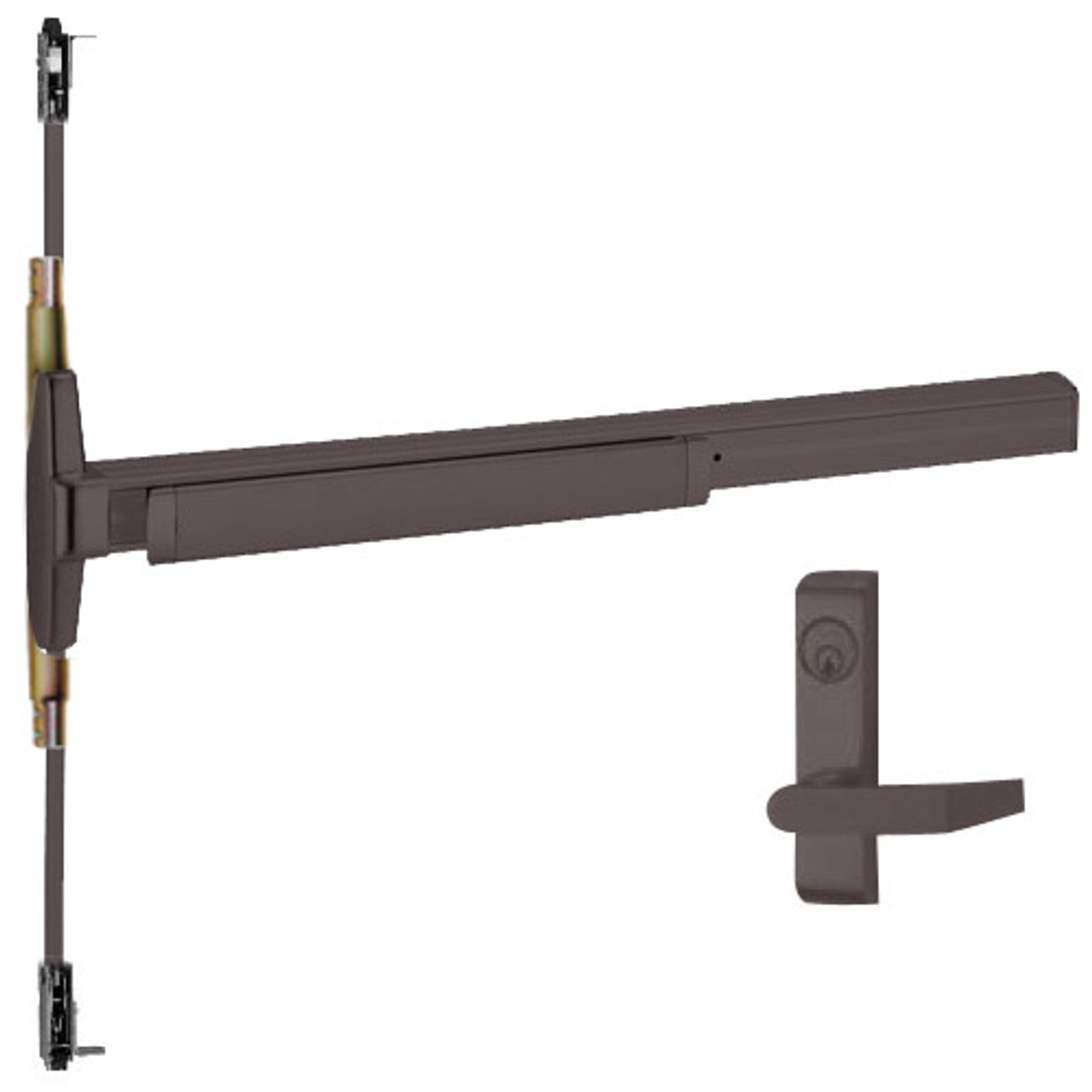

3347A-L-F-313-3-LHR Von Duprin 3347A Series with 360L Lever Left Handed Fire Rated Vertical Rod Exit Device in Duranodic Dark Bronze Finish

This device is for a 36" door

The Von Duprin 3347A-L-F-313-3-LHR series of Exit Device for all types of double doors up to 8' x 10' (2438mm x 2540mm) is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3347A concealed vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3347A Series has a "grooved mechanism case"

Features and Benefits:

• Duranodic Dark Bronze Finish
• Lever trim - key locks and unlocks
• Handing: Left handed
• ANSI Function: 08 or 09 field selectable
• It fits door stiles as narrow as 3-1/2" (90mm) door size
• Device lengths: 3 feet (914mm) i.e 3' device for 2'4" - 3' door (660mm to 914 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3347A Series exit devices are UL listed for fire exit hardware
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
• Strike: Top - 388 unfinished strike and Bottom - 385A unfinished strike included as always
• Cylinders are not included
• Includes 360L standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
• Device centerline from finished floor: 39-13/16" (1006mm)
