Product Description

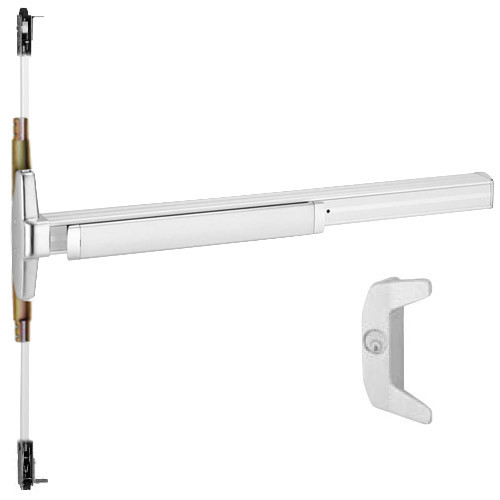

3347A-NL-RHR-US26-3 Von Duprin 3347A Series with 386NL Night Latch Non Fire Rated Concealed Vertical Rod Exit Device in Bright Chrome Finish

The Von Duprin 3347A-NL-RHR-US26-3 series of Exit Device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3347A concealed vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3347A Series has a "grooved mechanism case"

Features and Benefits:

• Bright Chrome Finish
• Night Latch Trim - Key Retracts Latchbolt
• ANSI Function: 03
• It fits door stiles as narrow as 1-3/4" (44mm) door size
• Device lengths: 3 feet (914mm) i.e 3' device for 2' 4" - 3' door (660mm to 914 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Handed operation - Right Hand Reverse
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3347A Series exit devices are UL listed for panic hardware
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw
• Strike: Top - 388 strike unfinished, bottom - 385A unfinished strike included as always
• Hex key dogging feature standard
• Includes 386NL standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
• Device centerline from finished floor: 39-13/16" (1006mm)
