Product Description

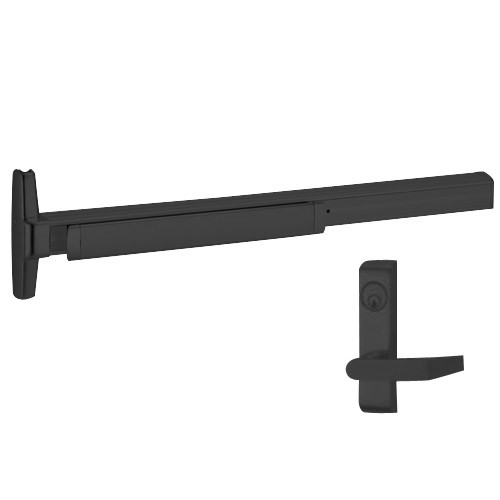

3348A-L-315-2-LHR Von Duprin 3348A Series with Left Handed 360L Lever Non Fire Rated Concealed Vertical Rod Exit Device in Black Finish

The Von Duprin 3348A-L-315-2-LHR series of Exit Device for hollow metal single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3348A concealed vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3348A Series has a "grooved mechanism case"

Features and Benefits:

• Black Finish
• Lever Trim - Key Locks and Unlocks
• Left hand-reverse
• ANSI Function: 08 or 09 field selectable
• It fits door stiles as narrow as 1-3/4" (44mm) door size
• Device lengths: 2 feet (610 mm) i.e. 2' device for 2' door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3348A Series exit devices are UL listed for panic hardware
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw and deadlocking anti-friction top and bottom bolt 1-1/2" (38mm) throw
• Strike: Top - 388 strike unfinished, bottom - 385A unfinished strike
• Hex key dogging feature standard
• Includes 360L standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
• Device centerline from finished floor: 39-13/16" (1006mm) standard
