Product Description

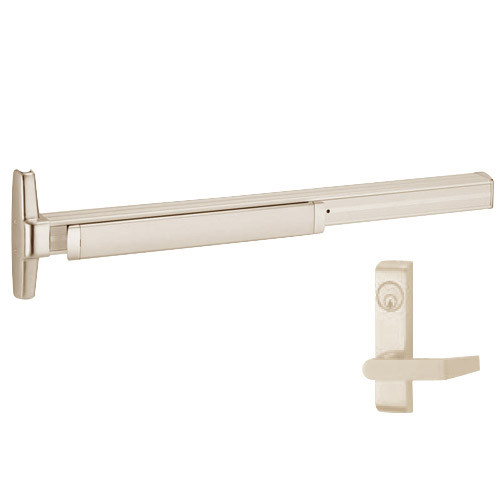

3348A-L-F-US4-3-RHR Von Duprin 3348A Series with 360L Lever Right Handed Fire Rated Vertical Rod Exit Device in Satin Brass Finish

This device is for a 36" door

The Von Duprin 3348A-L-F-US4-3-RHR series of Exit Device for hollow metal single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3348A Exit Device for Hollow Metal Doors is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3348A Series has a "grooved mechanism case"

Features and Benefits:

• Satin Brass Finish
• Lever trim - key locks and unlocks
• Handing: Right handed
• ANSI Function: 08 or 09 field selectable
• It fits door stiles as narrow as 1-3/4" (44 mm) door size
• Device lengths: 3 feet (914mm) i.e 3' device for 2'4" - 3' door (660mm to 914 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3348A series exit devices are UL listed for fire exit hardware
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16 mm) throw and 1-1/2" (38mm) throw
• Strike: Top - 388 unfinished strike and Bottom - 385A unfinished strike included as always
• Cylinders are not included
• Hex key dogging feature standard
• Includes 360L standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
• Device centerline from finished floor: 39-13/16" (1006mm) as standard and adjustable from 35-5/8" (905mm) to 49-5/8" (1260mm)
