Product Description

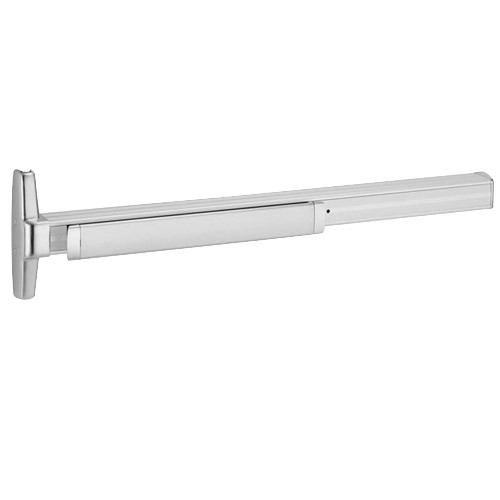

3349A-EO-F-US28-4 Von Duprin 3349A Series Fire Rated Concealed Vertical Cable Exit Device in Anodized Aluminum Finish

This device is for a 48" door

The Von Duprin 3349A-EO-F-US28-4 series of exit device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3349A concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3349A Series has a "grooved mechanism case"

Features and Benefits:

• Anodized Aluminum finish
• Recommended for door opening heights - 6'8" to 8'4" as standard
• ANSI Function: 01
• Exit only - No outside trim
• It fits door stiles as narrow as 2-1/8" (44 mm) door size
• Device lengths: 4 feet (1219mm) i.e 4' device for 2'10" - 4' door (813 mm to 1219 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Vertical cables: 7/32" (6mm) diameter stainless steel cables
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3349A series exit devices are UL listed for fire exit hardware and are ANSI A156.3, 2001, Grade1 certified
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 1/2" (13mm) throw
• Strike: Top - 249 strike and Bottom - 349 strike included as always
• Cylinders are not included
• Hex key dogging feature standard
• Device centerline from finished floor: 39-13/16" (1006mm) as standard
