Product Description

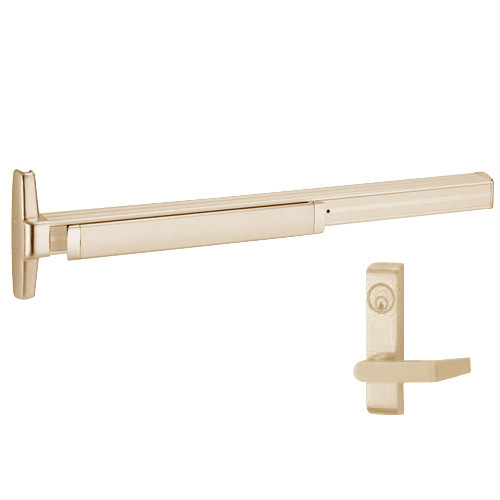

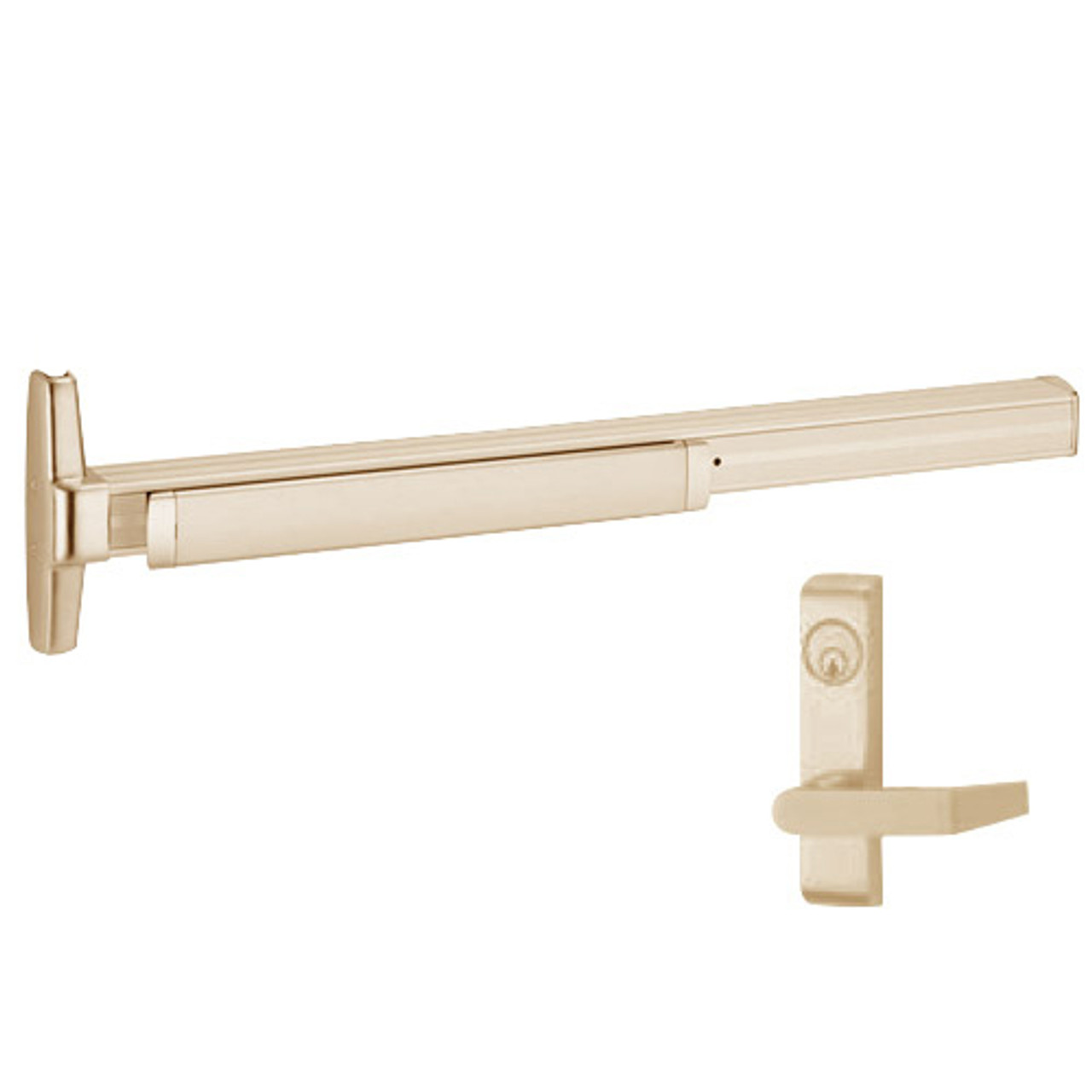

3349A-L-F-US10-3-RHR Von Duprin 3349A Series with 360L Lever Right Handed Fire Rated Concealed Vertical Cable Exit Device in Satin Bronze Finish

This device is for a 36" door

The Von Duprin 3349A-L-F-US10-3-RHR series of exit device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 3349A concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected.

The 3349A Series has a "grooved mechanism case"

Features and Benefits:

• Satin Bronze finish
• Recommended for door opening heights - 6'8" to 8'4" as standard
• Lever trim - key locks and unlocks
• Handing: Right handed
• ANSI Function: 08 or 09 field selectable
• It fits door stiles as narrow as 2-1/8" (44 mm) door size
• Device lengths: 3 feet (914mm) i.e 3' device for 2'4" - 3' door (660mm to 914 mm) door size
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Fasteners: Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood and metal doors
• Vertical cables: 7/32" (6mm) diameter stainless steel cables
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 3349A series exit devices are UL listed for fire exit hardware
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 1/2" (13mm) throw
• Strike: Top - 249 strike and Bottom - 349 strike included as always
• Cylinders are not included
• Hex key dogging feature standard
• Includes 360L standard trim ANSI/BHMA A156.3 (2001) Grade-1 certified
• Device centerline from finished floor: 39-13/16" (1006mm) as standard
